- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX12005ETM+
- Part Number MAX12005ETM+
- Manufacturer Analog Devices
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 48-LFCSP-7X7X0.75_2023-1
- Released Date Jan 11, 2017
- Last Modified Date Jul 5, 2023 4:22 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX12005ETM+ Details
-
Manufacturer Part Number:
MAX12005ETM+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
48-LFCSP-7X7X0.75
-
Package Description:
7 X 7 MM, ROHS COMPLIANT, TQFN-48
-
Pin Count:
48
-
Manufacturer Package Code:
48-LFCSP-7X7X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2010-10-06
-
Manufacturer:
Analog Devices Inc
MAX12005ETM+ Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX12005ETM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To optimize the performance of the MAX12005ETM+ in noisy environments, use a low-pass filter or a band-pass filter to filter out unwanted noise and interference. Additionally, use a shielded cable to connect the analog input signals to the ADC, and consider using a common-mode choke to reduce electromagnetic interference (EMI).
-
The maximum sampling rate of the MAX12005ETM+ is 1.5Msps (megasamples per second) in normal mode and 3Msps in turbo mode. However, the actual sampling rate may be limited by the system clock frequency, the analog input bandwidth, and the digital output data rate.
-
The MAX12005ETM+ does not require calibration in the classical sense. However, it's recommended to perform a system-level calibration to ensure that the ADC is operating within its specified accuracy. This can be done by applying a known input signal and measuring the output code to determine the gain and offset errors.
-
The power consumption of the MAX12005ETM+ depends on the operating mode and the clock frequency. In normal mode, the typical power consumption is around 35mW at a clock frequency of 50MHz. In turbo mode, the typical power consumption is around 60mW at a clock frequency of 100MHz.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX12005ETM+ Overview

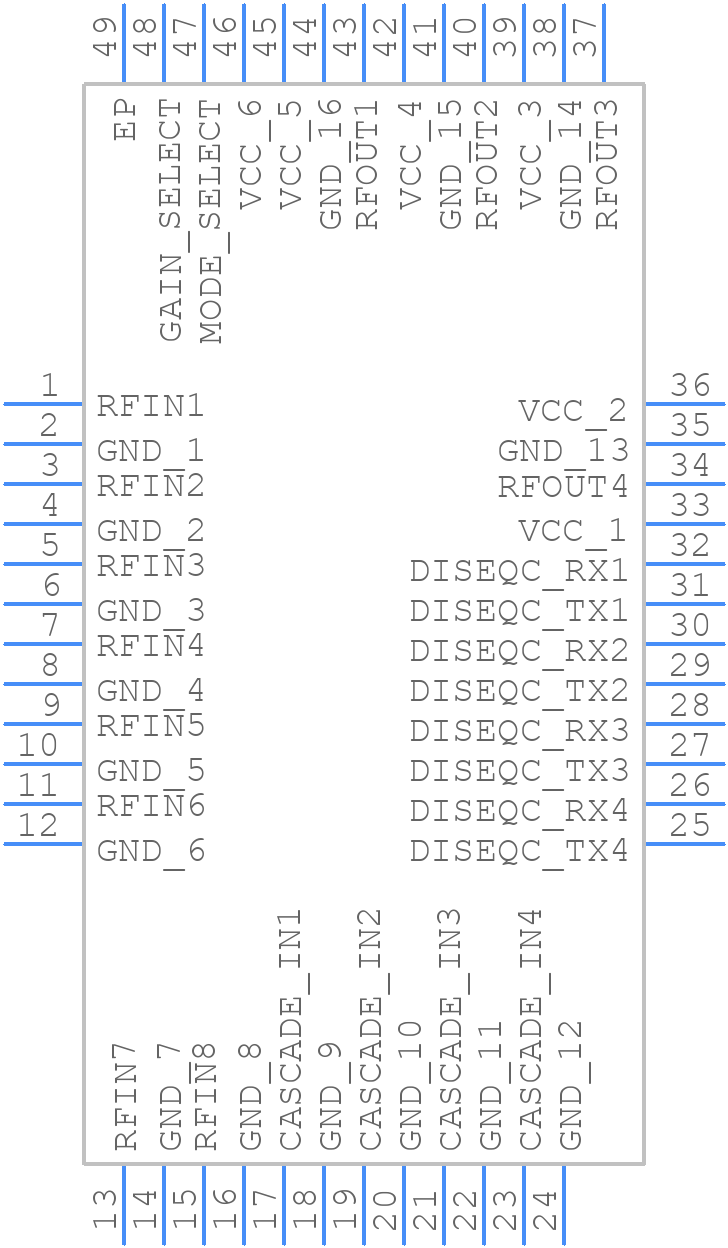

Use the download button to access the MAX12005ETM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX12,
or try a keyword search, such as Multiplexers or Switches
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
