MAX1258BETM+ - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized 12-Bit 16Ch 300ksps 5.5V Precision ADC

Download MAX1258BETM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

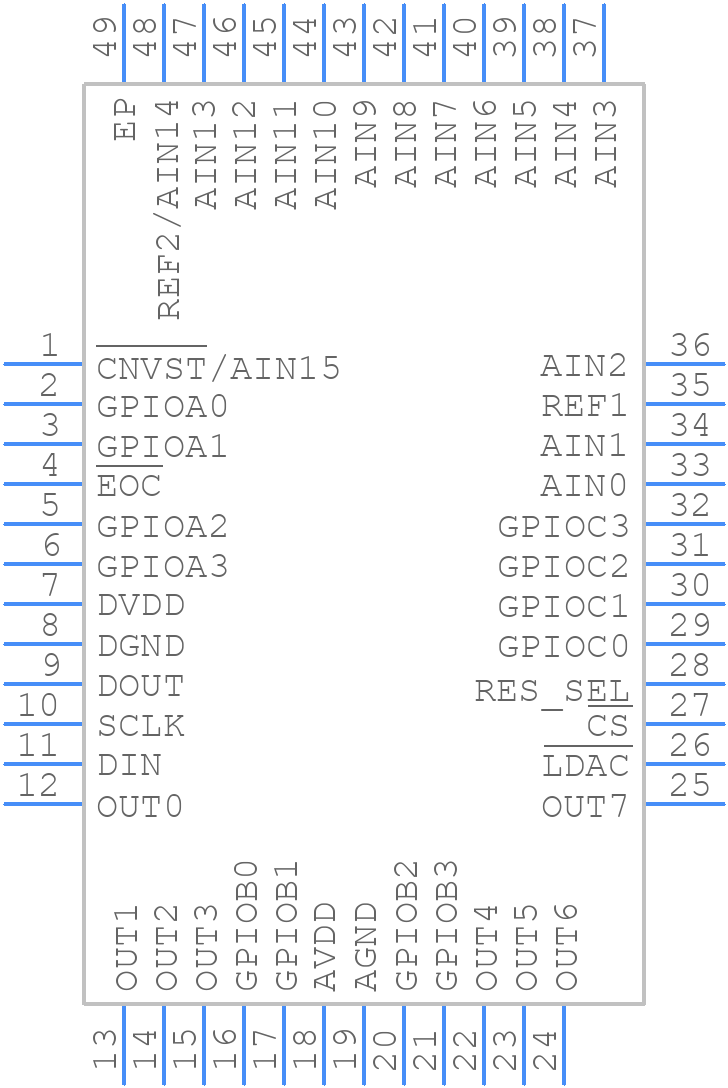

MAX1258BETM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1258BETM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 TQFN T4877M-6
click to zoom
3D Models
MAX1258BETM+ - Analog Devices - 3D model - Quad Flat No-Lead - 48 TQFN T4877M-6
click to zoom

MAX1258BETM+ Details

  • Manufacturer Part Number:

    MAX1258BETM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2004-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX1258BETM+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX1258BETM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the analog-to-digital converter (ADC). Additionally, it's recommended to use a low-impedance source for the reference voltage and to decouple the power supplies with ceramic capacitors.
  • To ensure accuracy and linearity over the entire operating temperature range, it's essential to follow the recommended calibration procedure outlined in the datasheet. Additionally, the device should be operated within the specified temperature range, and the power supply voltage should be kept stable and within the recommended range.
  • The maximum sampling rate of the MAX1258BETM+ is 1Msps. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal. Increasing the sampling rate will also increase the power consumption, so it's essential to optimize the sampling rate based on the system's requirements.
  • If the MAX1258BETM+ is not converting the analog input signal correctly, it's essential to check the input signal range, the reference voltage, and the power supply voltage. Common causes of this issue include an out-of-range input signal, a noisy or unstable reference voltage, or a power supply voltage that is outside the recommended range. Additionally, it's recommended to check the device's clock frequency and the conversion mode to ensure they are set correctly.
  • The recommended method for interfacing the MAX1258BETM+ with a microcontroller or a DSP involves using a serial interface, such as SPI or I2C, to communicate with the device. The microcontroller or DSP should be configured to generate the necessary clock signals and control signals for the MAX1258BETM+, and the data should be transferred using a synchronous or asynchronous serial protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1258BETM+ Overview

Use the download button to access the MAX1258BETM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX12, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
