MAX12930EASA+ - Analog Devices

Description: ● Robust Galvanic Isolation of Digital Signals • Withstands 5kVRMS for 60s (VISO) Wide-Body • Withstands 3kVRMS for 60s (VISO) Narrow-Body • Continuously Withstands 848VRMS (VIOWM) Wide-Body • Continuously Withstands 445VRMS (VIOWM) Narrow-Body • Withstands ±10kV Surge Between GNDA and GNDB with 1.2/50µs Waveform • High CMTI (50kV/µs, typ) ● Options to Support a Broad Range of Applications • 2 Data Rates (25Mbps/150Mbps) • 2 Channel Direction Configurations • 2 Output Default States (High or Lo

Download MAX12930EASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

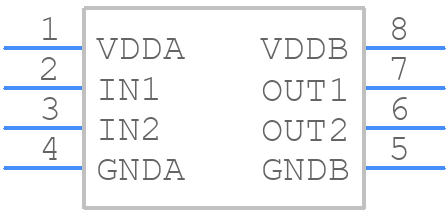

MAX12930EASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX12930EASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - so----8
click to zoom
3D Models
MAX12930EASA+ - Analog Devices - 3D model - Small Outline Packages - so----8
click to zoom

MAX12930EASA+ Details

  • Manufacturer Part Number:

    MAX12930EASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-09-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX12930EASA+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX12930EASA+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to place the decoupling capacitors close to the device.
  • To optimize the performance of the MAX12930EASA+ in a noisy environment, it's recommended to use a low-pass filter on the input signals, to use a shielded cable for the analog input signals, and to place the device away from sources of electromagnetic interference (EMI). Additionally, using a common-mode filter on the input signals can help to reduce noise and improve performance.
  • The maximum operating temperature range for the MAX12930EASA+ is -40°C to +125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • To troubleshoot issues with the MAX12930EASA+, it's recommended to check the power supply voltage, to verify that the input signals are within the specified range, and to check for any signs of physical damage or contamination. Additionally, using an oscilloscope to monitor the input and output signals can help to identify any issues with the device.
  • Yes, the MAX12930EASA+ is AEC-Q100 qualified and can be used in automotive applications. However, it's recommended to follow the guidelines and requirements for automotive applications, such as using a suitable PCB material and layout, and ensuring that the device is properly soldered and connected.
