MAX1299CEAE+ - Analog Devices

Description: Maxim MAX1299CEAE+ Temperature Sensor 16-Pin SSOP, -40 → +85 °C

Download MAX1299CEAE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

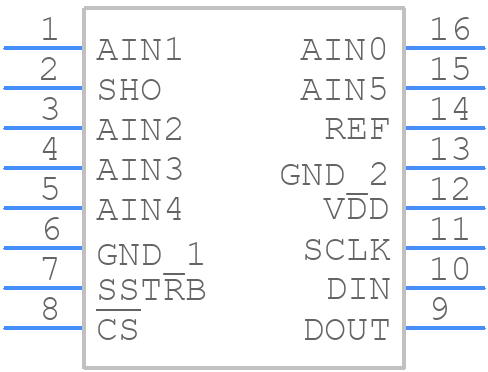

Symbol
MAX1299CEAE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1299CEAE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A16+2
click to zoom
3D Models
MAX1299CEAE+ - Analog Devices - 3D model - Small Outline Packages - A16+2
click to zoom

MAX1299CEAE+ Details

  • Manufacturer Part Number:

    MAX1299CEAE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    16-SSOP-5.3_MM

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SSOP-5.3_MM

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2000-07-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    5.29 mm

  • Body Height:

    1.73 mm

  • Body Length or Diameter:

    6.2 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.5 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    3-WIRE INTERFACE

  • Output Voltage-Max:

    2.4 V

  • Output Voltage-Min:

    0.6 V

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX1299CEAE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX1299CEAE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the analog-to-digital converter (ADC). Additionally, it is recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX1299CEAE+ in noisy environments, it is recommended to use a low-pass filter on the input signals, use a shielded cable for the analog input signals, and keep the device away from high-frequency noise sources. Additionally, using a common-mode choke on the power supply lines can help to reduce noise.
  • The maximum operating temperature range for the MAX1299CEAE+ is -40°C to +125°C. However, it is recommended to operate the device within the -20°C to +85°C range for optimal performance and reliability.
  • The MAX1299CEAE+ can be programmed for custom gain and offset settings using the SPI interface. The device has a 16-bit gain register and a 16-bit offset register that can be written to using the SPI interface. The gain and offset values can be calculated using the formulas provided in the datasheet.
  • The recommended power-up sequence for the MAX1299CEAE+ is to first power up the analog power supply (AVCC), followed by the digital power supply (DVCC), and then finally the clock signal. This sequence helps to ensure that the device powers up correctly and minimizes the risk of latch-up or other power-up related issues.
