MAX13053AEASA+ - Analog Devices

Description: CAN Interface IC 5V CAN with High FP, CMR, and ESD with Silent Mode

Download MAX13053AEASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

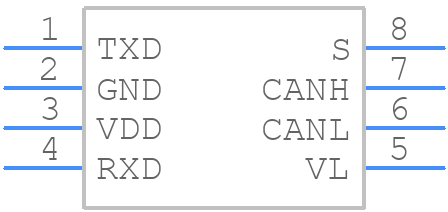

MAX13053AEASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13053AEASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so4
click to zoom
3D Models
MAX13053AEASA+ - Analog Devices - 3D model - Small Outline Packages - -8 so4
click to zoom

MAX13053AEASA+ Details

  • Manufacturer Part Number:

    MAX13053AEASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-02-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX13053AEASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13053AEASA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying the power supply voltage to the device before applying the input signals. Additionally, the device should be configured in a specific order, such as setting the output voltage and then enabling the output.
  • The MAX13053AEASA+ has a maximum junction temperature of 150°C. To prevent overheating, it's recommended to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, the device should be operated within its recommended operating conditions, and the output current should be limited to prevent excessive power dissipation.
  • To troubleshoot issues with the MAX13053AEASA+, it's recommended to follow a systematic approach, such as checking the power supply voltage, input signals, and output voltage. Additionally, it's recommended to use oscilloscopes or other measurement tools to monitor the device's behavior and identify the root cause of the issue. The device's datasheet and application notes can also provide valuable troubleshooting guidance.
  • The MAX13053AEASA+ is designed to meet EMI/EMC standards, but it's still important to follow good design practices to minimize EMI/EMC issues. This includes using a solid ground plane, minimizing the length of the traces, and using shielding or filtering components as needed. Additionally, it's recommended to follow the device's datasheet and application notes for specific EMI/EMC guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX13053AEASA+ Overview

Use the download button to access the MAX13053AEASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
