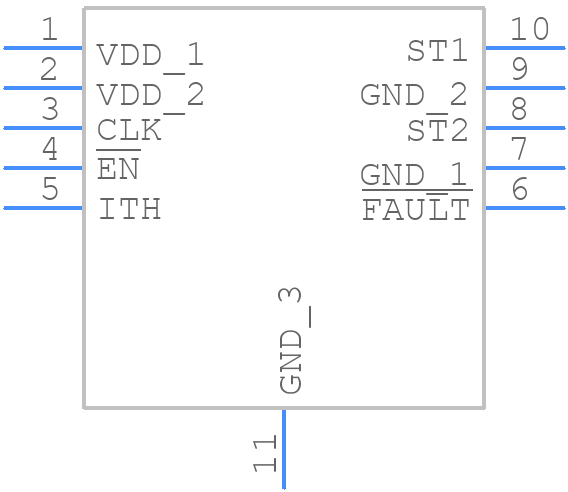

MAX13256ATB+ - Analog Devices

MAX13256ATB+ Details

• Manufacturer Part Number:

  MAX13256ATB+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  10-LFCSP-3X3X0.75

• Package Description:

  TDFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  10-LFCSP-3X3X0.75

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2011-06-22

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Built-in Protections:

  OVER CURRENT; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  1

• Interface IC Type:

  HALF BRIDGE BASED PERIPHERAL DRIVER

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Peak Current Limit-Nom:

  0.65 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  9 mA

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  8 V

• Supply Voltage-Nom:

  24 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
