MAX1362EUB+T - Analog Devices

Description: 4-Channel, 10-Bit, System Monitors with Programmable Trip Window and SMBus Alert Response

Download MAX1362EUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

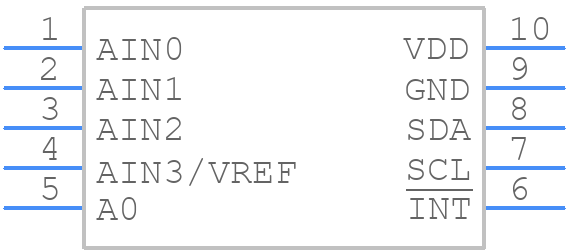

MAX1362EUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1362EUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10CN+1
click to zoom
3D Models
MAX1362EUB+T - Analog Devices - 3D model - Small Outline Packages - U10CN+1
click to zoom

MAX1362EUB+T Details

  • Manufacturer Part Number:

    MAX1362EUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    TSSOP,

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2004-05-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX1362EUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX1362EUB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
  • The MAX1362EUB+T has a thermal pad that must be connected to a solid ground plane to dissipate heat. It's recommended to use a thermal relief pattern on the PCB to improve heat dissipation. Additionally, the device should be placed in a well-ventilated area, and the ambient temperature should be kept below 85°C to ensure reliable operation.
  • The recommended input impedance for the MAX1362EUB+T is 1kΩ to 10kΩ. This ensures that the device can accurately sense the input voltage and provide a stable output.
  • Yes, the MAX1362EUB+T is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure that the device is securely attached to the PCB. Additionally, the device should be placed in a location that minimizes exposure to vibration and shock.
  • To troubleshoot issues with the MAX1362EUB+T, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the input voltage is within the specified range and that the device is properly configured. Use an oscilloscope to check the output voltage and ensure that it's stable and within the expected range. If issues persist, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1362EUB+T Overview

Use the download button to access the MAX1362EUB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
