MAX15004AAUE+ - Analog Devices

Description: MAX15004AAUE+, PWM Current Mode Controller, 1 A Boost, Flyback, 500 kHz, 4.5 → 40 V, 16-Pin TSSOP EP

Download MAX15004AAUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

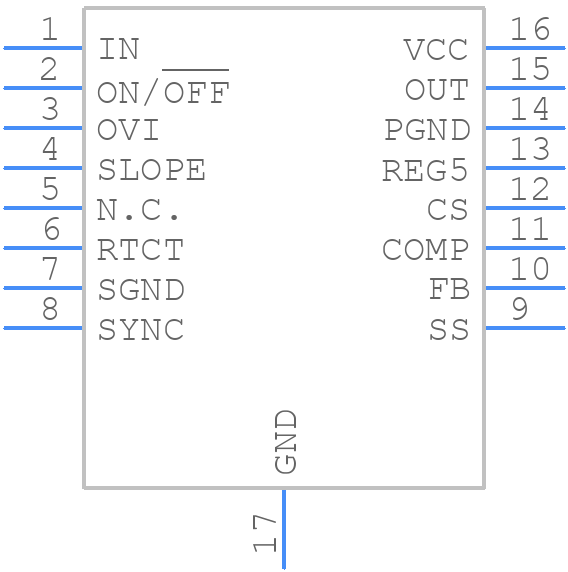

Symbol
MAX15004AAUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15004AAUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX15004AAUE+-1
click to zoom
3D Models
MAX15004AAUE+ - Analog Devices - 3D model - Small Outline Packages - MAX15004AAUE+-1
click to zoom

MAX15004AAUE+ Details

  • Manufacturer Part Number:

    MAX15004AAUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-02-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3.1 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX15004AAUE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX15004AAUE+ is to use a 4-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode filter capacitor between the input and output pins to reduce EMI.
  • To ensure the MAX15004AAUE+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which is to apply VCC first, followed by VDD. Also, ensure that the input voltage is within the recommended operating range and that the device is properly bypassed with capacitors.
  • The maximum operating temperature range for the MAX15004AAUE+ is -40°C to +125°C. However, it's recommended to operate the device within the recommended operating temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX15004AAUE+, start by checking the power supply and input voltage to ensure they are within the recommended operating range. Next, check the output voltage and current to ensure they are within the expected range. If the issue persists, check the PCB layout and component placement to ensure they meet the recommended layout guidelines.
  • Yes, the MAX15004AAUE+ is suitable for use in high-reliability or safety-critical applications. However, it's recommended to follow the guidelines and recommendations outlined in the datasheet and to perform thorough testing and validation to ensure the device meets the required safety and reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX15004AAUE+ Overview

Use the download button to access the MAX15004AAUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
