MAX15006AATT+ - Analog Devices

Description: Linear Voltage Regulators 40V, Ultra-Low Quiescent-Current Linear Regulators in 6-Pin TDFN/8-Pin SO

Download MAX15006AATT+ Model

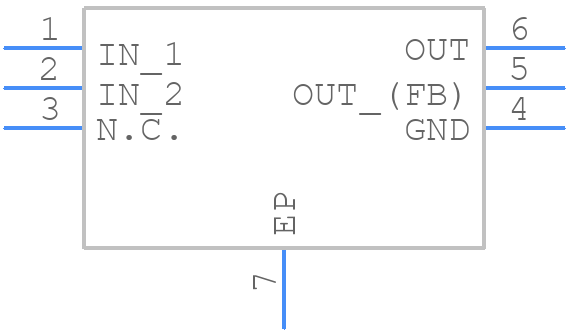

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX15006AATT+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T633+2
click to zoom
3D Models
MAX15006AATT+ - Analog Devices  - 3D model - Small Outline No-lead - T633+2
click to zoom

MAX15006AATT+ Details

  • Manufacturer Part Number:

    MAX15006AATT+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.7 V

  • Dropout Voltage1-Nom:

    0.7 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00825%

  • Load Regulation-Max(%):

    0.0495%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.005 A

  • Output Voltage1-Max:

    3.35 V

  • Output Voltage1-Min:

    3.25 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.13,38

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

MAX15006AATT+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15006AATT+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input and output capacitors for the MAX15006AATT+ should be selected based on the specific application requirements. A general guideline is to use X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be between 1uF to 10uF, depending on the desired ripple voltage and transient response.
  • The MAX15006AATT+ has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. As a general guideline, the ambient temperature should be kept below 85°C to ensure reliable operation.
  • To ensure proper power-up and initialization of the MAX15006AATT+, it's recommended to follow a controlled power-up sequence, where the input voltage is ramped up slowly (typically 1ms to 10ms) to the nominal operating voltage. Additionally, the EN pin should be pulled high after the input voltage has reached the nominal operating voltage.
  • The recommended input voltage range for the MAX15006AATT+ is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V. However, the output voltage regulation and efficiency may be affected at lower input voltages.
