MAX15006AATT+T - Analog Devices

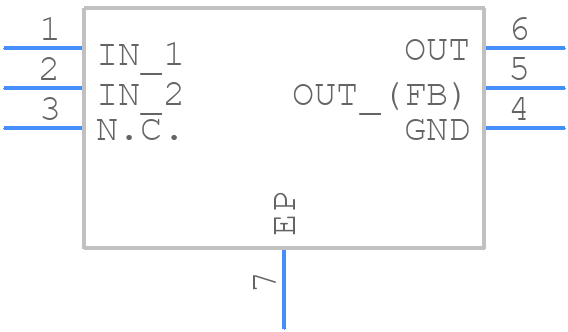

MAX15006AATT+T Details

• Manufacturer Part Number:

  MAX15006AATT+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  6-LFCSP-3X3X0.75

• Package Description:

  3 X 3 MM, ROHS COMPLIANT, TDFN-6

• Pin Count:

  6

• Manufacturer Package Code:

  6-LFCSP-3X3X0.75

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2006-11-08

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.7 V

• Dropout Voltage1-Nom:

  0.7 V

• Input Voltage Absolute-Max:

  45 V

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  4 V

• JESD-30 Code:

  S-PDSO-N6

• JESD-609 Code:

  e3

• Length:

  3 mm

• Line Regulation-Max:

  0.00825%

• Load Regulation-Max(%):

  0.0495%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.005 A

• Output Voltage1-Max:

  3.35 V

• Output Voltage1-Min:

  3.25 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.13,38

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  1.5%

• Width:

  3 mm
