MAX15006BASA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX15006BASA+ - Fixed LDO Voltage Regulator, 4V-40V in, 300mV Dropout, 5V/50mA out, NSOIC-8

Download MAX15006BASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

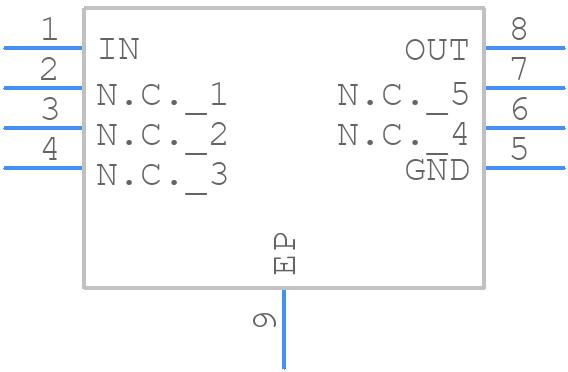

MAX15006BASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15006BASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E+12_2020
click to zoom
3D Models
MAX15006BASA+ - Analog Devices - 3D model - Small Outline Packages - S8E+12_2020
click to zoom

MAX15006BASA+ Details

  • Manufacturer Part Number:

    MAX15006BASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.053 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Line Regulation-Max:

    0.0125%

  • Load Regulation-Max:

    0.075%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.005 A

  • Output Voltage1-Max:

    5.075 V

  • Output Voltage1-Min:

    4.925 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.68 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3.9 mm

MAX15006BASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15006BASA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure the stability of the MAX15006BASA+, it's crucial to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions. It's also important to consider the effects of parasitic inductance and capacitance in the layout.
  • The MAX15006BASA+ can handle input voltages up to 42V, but it's recommended to operate the device within its recommended operating conditions to ensure reliable operation and to prevent damage to the device.
  • The MAX15006BASA+ is rated for operation up to 125°C, but it's essential to consider the effects of temperature on the device's performance and reliability. The device's output voltage and current capabilities may be derated at high temperatures, and the device may require additional thermal management.
  • To troubleshoot issues with the MAX15006BASA+, start by verifying the input voltage and current, and checking the output voltage and current. Use an oscilloscope to check for oscillations or noise on the output. Check the PCB layout and component values to ensure they meet the recommended specifications. Consult the datasheet and application notes for troubleshooting guidelines and common issues.
