ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2006-11-08
Manufacturer:
Analog Devices Inc
YTEOL:
3
Adjustability:
FIXED
Dropout Voltage1-Max:
0.053 V
Dropout Voltage1-Nom:
0.3 V
Input Voltage Absolute-Max:
45 V
Input Voltage-Max:
40 V
Input Voltage-Min:
4 V
JESD-30 Code:
R-PDSO-N6
JESD-609 Code:
e3
Length:
3 mm
Line Regulation-Max:
0.0125%
Load Regulation-Max(%):
0.075%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
0.05 A
Output Voltage1-Max:
5.075 V
Output Voltage1-Min:
4.925 V
Output Voltage1-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SON
Package Equivalence Code:
SOLCC6,.13,38
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.95 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
1.5%
Width:
3 mm
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX15006BATT/V+T Overview

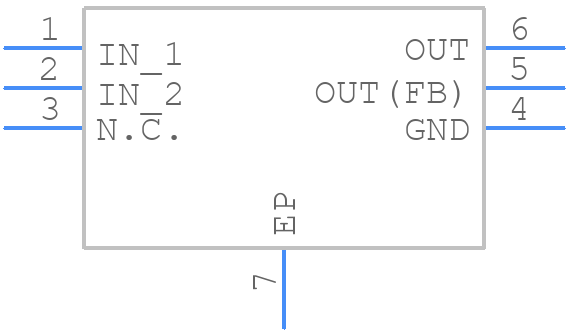

Use the download button to access the MAX15006BATT/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15,
or try a keyword search, such as Linear Regulator ICs
