MAX15019BASA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX15019BASA+ - MOSFET Driver, 8V-12.6V supply, 3A output, NSOIC-8

Download MAX15019BASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

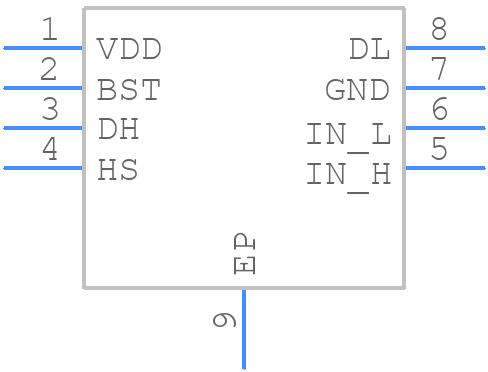

MAX15019BASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15019BASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8L SOIC
click to zoom
3D Models
MAX15019BASA+ - Analog Devices - 3D model - Small Outline Packages - 8L SOIC
click to zoom

MAX15019BASA+ Details

  • Manufacturer Part Number:

    MAX15019BASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-06-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.68 mm

  • Supply Current-Max:

    3.75 mA

  • Supply Voltage-Max:

    12.6 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    140 V

  • Supply Voltage1-Min:

    8 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    66 µs

  • Turn-on Time:

    66 µs

  • Width:

    3.9 mm

MAX15019BASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15019BASA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure the stability of the MAX15019BASA+, it's crucial to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions. It's also important to consider the effects of parasitic inductance and capacitance in the layout.
  • The MAX15019BASA+ can handle input voltages up to 42V, but it's recommended to operate the device within its recommended operating conditions to ensure reliable operation and to prevent damage to the device.
  • The MAX15019BASA+ is rated for operation up to 125°C, but it's essential to consider the effects of temperature on the device's performance and reliability. The device's power dissipation, junction temperature, and thermal resistance should be carefully evaluated to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the MAX15019BASA+, it's essential to follow a systematic approach. Start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values to ensure they meet the recommended specifications. Use oscilloscopes and other diagnostic tools to identify any anomalies in the device's operation. Consult the datasheet, application notes, and technical support resources for guidance on troubleshooting specific issues.
