MAX15024AATB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX15024AATB+T - MOSFET Driver, 4.5V-28V supply, 8A output, TDFN-10

Download MAX15024AATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

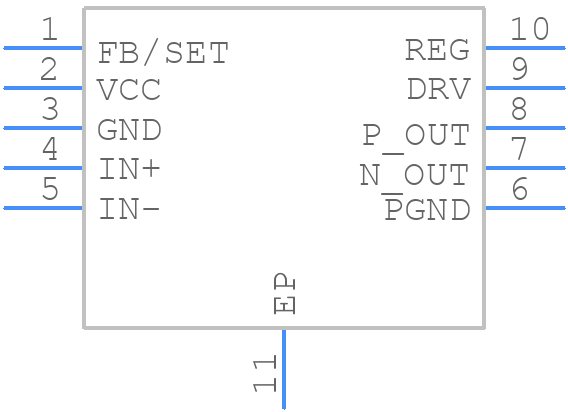

MAX15024AATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15024AATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1_2020-1
click to zoom
3D Models
MAX15024AATB+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1_2020-1
click to zoom

MAX15024AATB+T Details

  • Manufacturer Part Number:

    MAX15024AATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    ROHS COMPLIANT, TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    8 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.032 µs

  • Turn-on Time:

    0.032 µs

  • Width:

    3 mm

MAX15024AATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15024AATB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF. The capacitor values and types may vary depending on the specific application and operating conditions.
  • The MAX15024AATB+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range is -40°C to +85°C. Above 85°C, the device's performance and reliability may be affected.
  • Yes, the MAX15024AATB+T is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device is securely attached to the board. Additionally, the device's pins should be properly supported to prevent damage from vibration.
  • To troubleshoot issues with the MAX15024AATB+T, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and mounted to the PCB. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for any noise or oscillations on the input or output. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
