MAX15046BAEE+ - Analog Devices

Description: Switching Controllers 40V Synchronous Buck Controller

Download MAX15046BAEE+ Model
Schematic
symbols

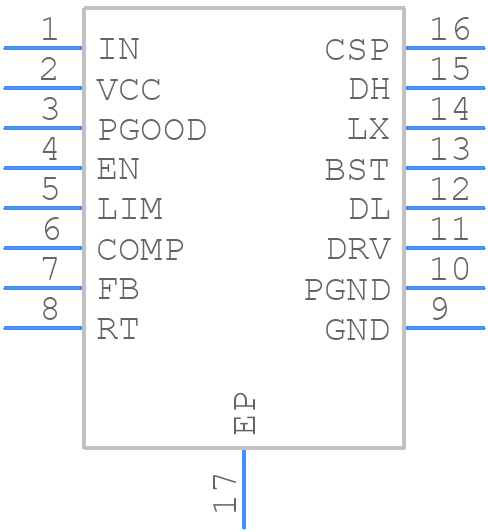

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX15046BAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP-EP
click to zoom
3D Models
MAX15046BAEE+ - Analog Devices  - 3D model - Small Outline Packages - 16 QSOP-EP
click to zoom

MAX15046BAEE+ Details

  • Manufacturer Part Number:

    MAX15046BAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2009-08-25

  • Manufacturer:

    Analog Devices Inc

  • Risk Rank:

    7.51

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 3.825V DOWN TO 0.6V; ALSO HAS PWM CNTRL TECH

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    HYSTERETIC CURRENT MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    5.25 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HSON

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1100 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX15046BAEE+ Overview

Use the download button to access the MAX15046BAEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15, or try a keyword search, such as Switching Regulator or Controllers
