MAX15051EWE+T - Analog Devices

Description: Switching Voltage Regulators 4A 1MHz Step-Down w/Integrated Switch W162C2+1

Download MAX15051EWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

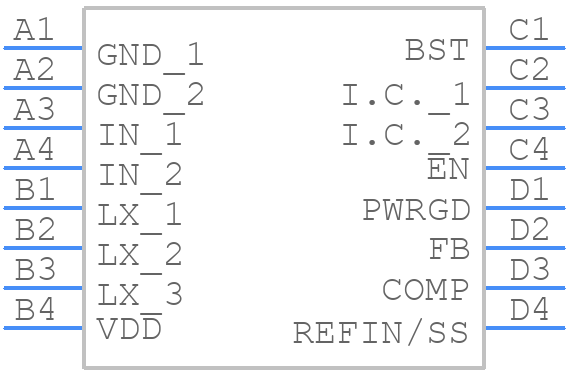

Symbol
MAX15051EWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15051EWE+T - Analog Devices PCB footprint - BGA - BGA - W162C2+1
click to zoom
3D Models
MAX15051EWE+T - Analog Devices - 3D model - BGA - W162C2+1
click to zoom

MAX15051EWE+T Details

  • Manufacturer Part Number:

    MAX15051EWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Package Description:

    2 X 2 MM, 0.50 MM PITCH, ROHS COMPLIANT, WLP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-09-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.19 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    4.95 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    8.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1100 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.06 mm

MAX15051EWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15051EWE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of input and output capacitors for the MAX15051EWE+T depends on the specific application and operating conditions. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX15051EWE+T is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the MAX15051EWE+T is suitable for high-reliability and automotive applications. It's built with high-quality materials and manufacturing processes to ensure high reliability and robustness. However, it's recommended to follow the specific requirements and guidelines for the target application, such as AEC-Q100 for automotive applications.
  • To troubleshoot common issues with the MAX15051EWE+T, start by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout is correct. Use an oscilloscope to measure the output voltage and current, and check for any signs of overheating or thermal shutdown. Consult the datasheet and application notes for more detailed troubleshooting guidelines.
