MAX15059AATE+T - Analog Devices

Description: Switching Voltage Regulators 76V, 300mW Boost Converter and Current Monitor for APD Bias Applications

Download MAX15059AATE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

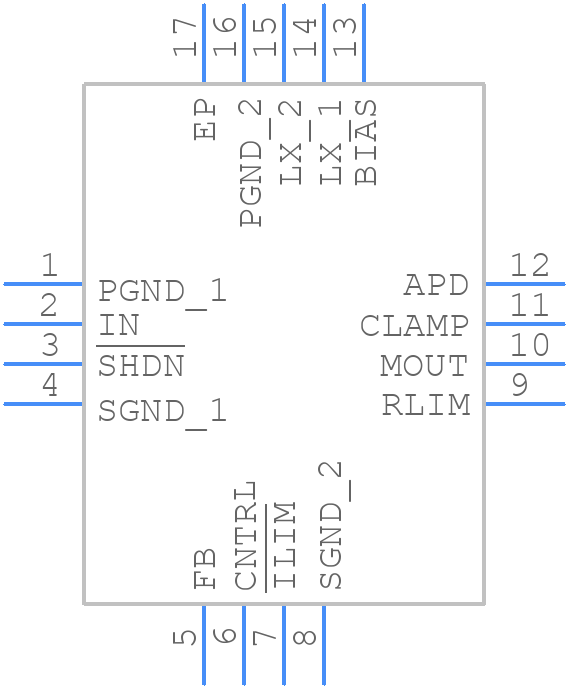

MAX15059AATE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15059AATE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633-4-1
click to zoom
3D Models
MAX15059AATE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633-4-1
click to zoom

MAX15059AATE+T Details

  • Manufacturer Part Number:

    MAX15059AATE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-06-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 7.8V TO 76V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.3 A

  • Output Voltage-Max:

    76 V

  • Output Voltage-Min:

    7.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.35 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    420 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX15059AATE+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX15059AATE+T is to follow the guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and ensuring good thermal dissipation. Additionally, a 4-layer PCB with a solid ground plane is recommended.
  • To optimize the performance of the MAX15059AATE+T, it is recommended to follow the guidelines in the datasheet, including setting the correct input and output voltage ranges, selecting the appropriate output capacitor, and optimizing the PCB layout. Additionally, simulation tools such as SPICE can be used to model the behavior of the device and optimize its performance.
  • The maximum operating temperature range for the MAX15059AATE+T is -40°C to +125°C, as specified in the datasheet. However, it is recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • To troubleshoot issues with the MAX15059AATE+T, it is recommended to follow a systematic approach, including checking the input and output voltages, verifying the PCB layout, and checking for any signs of overheating or damage. Additionally, the datasheet and application notes can provide guidance on troubleshooting common issues.
  • The key differences between the MAX15059AATE+T and other similar devices from Analog Devices include the specific input and output voltage ranges, output current capability, and package type. It is recommended to review the datasheets for each device to determine the best fit for a specific design.
