MAX15062AATA+ - Analog Devices

Description: 60V, 300mA, Ultra-Small, High-Efficiency, Synchronous Step-Down DC-DC Converters

Download MAX15062AATA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

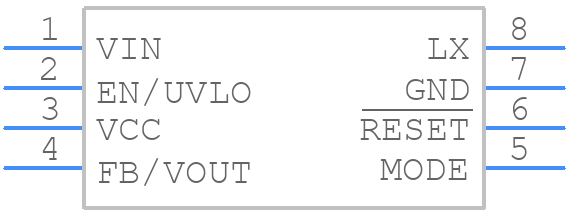

MAX15062AATA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15062AATA+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8l tdfn
click to zoom
3D Models
MAX15062AATA+ - Analog Devices - 3D model - Small Outline No-lead - 8l tdfn
click to zoom

MAX15062AATA+ Details

  • Manufacturer Part Number:

    MAX15062AATA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-06-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.62 A

  • Output Voltage-Max:

    5.07 V

  • Output Voltage-Min:

    4.93 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    535 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX15062AATA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15062AATA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor. It's also important to ensure that the input voltage is within the recommended range and that the device is not operated in a noisy environment.
  • The maximum input voltage that can be applied to the MAX15062AATA+ is 42V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 36V to ensure reliable operation and to prevent damage to the device.
  • The MAX15062AATA+ is rated for operation up to 125°C. However, it's essential to ensure that the device is properly derated for high-temperature operation, and that the PCB and surrounding components can withstand the high temperatures. Additionally, it's recommended to follow the thermal management guidelines provided in the datasheet and application notes.
  • To troubleshoot issues with the MAX15062AATA+, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the input and output. If the issue persists, consult the datasheet and application notes, and contact Analog Devices' technical support if necessary.
