MAX15103EWL+ - Analog Devices

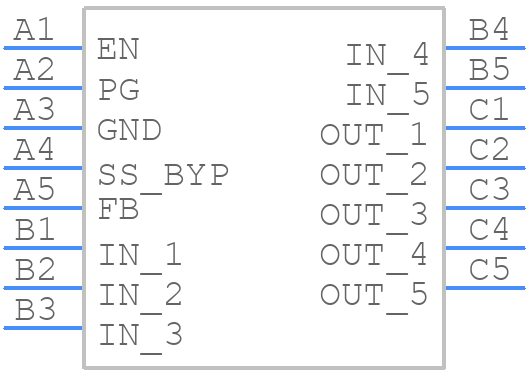

MAX15103EWL+ Details

• Manufacturer Part Number:

  MAX15103EWL+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  15-WLCSP-N/A

• Package Description:

  1.60 X 2.70 MM, ROHS COMPLIANT, WLP-15

• Pin Count:

  15

• Manufacturer Package Code:

  15-WLCSP-N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2011-10-06

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.2 V

• Dropout Voltage1-Nom:

  0.065 V

• JESD-30 Code:

  R-PBGA-B15

• Length:

  2.655 mm

• Line Regulation-Max (%/V):

  0.15

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  15

• Operating Temperature TJ-Max:

  85 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  3 A

• Output Voltage1-Max:

  5.2 V

• Output Voltage1-Min:

  0.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.69 mm

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Finish:

  Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.575 mm
