MAX15106BGWP+T - Analog Devices

Description: High-Efficiency, 8A, Current-Mode Synchronous Step-Down Switching Regulator

Download MAX15106BGWP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

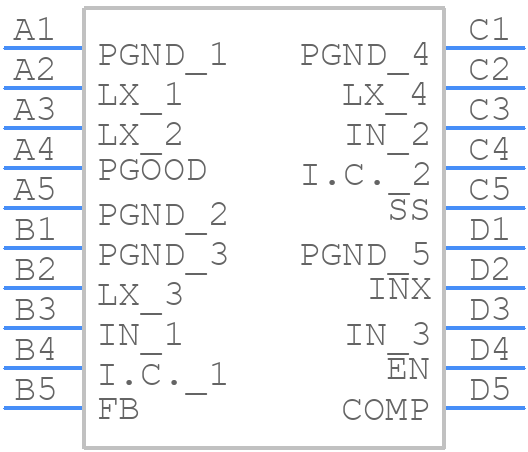

Symbol
MAX15106BGWP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15106BGWP+T - Analog Devices PCB footprint - BGA - BGA - W202D2Z+1
click to zoom
3D Models
MAX15106BGWP+T - Analog Devices - 3D model - BGA - W202D2Z+1
click to zoom

MAX15106BGWP+T Details

  • Manufacturer Part Number:

    MAX15106BGWP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-WLCSP-N/A

  • Package Description:

    WLP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XBGA-20

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5.225 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1150 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

MAX15106BGWP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15106BGWP+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The choice of input and output capacitors for the MAX15106BGWP+T depends on the specific application requirements. In general, low-ESR ceramic capacitors with a value of 10uF to 22uF are recommended for the input and output capacitors. The capacitor value and type should be chosen based on the desired ripple voltage, output voltage, and operating frequency.
  • The MAX15106BGWP+T can operate at ambient temperatures up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • Yes, the MAX15106BGWP+T is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's recommended to consult with Analog Devices Inc. for specific requirements and testing.
  • To troubleshoot issues with the MAX15106BGWP+T, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any noise or oscillations on the output voltage. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices Inc. for further assistance if needed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX15106BGWP+T Overview

Use the download button to access the MAX15106BGWP+T schematic symbol, PCB footprint, and 3D model.
