MAX15301AA02+CJK - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX15301AA02+CJK - DIGITAL CONTROLLER, 1MHZ, TQFN-32

Download MAX15301AA02+CJK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

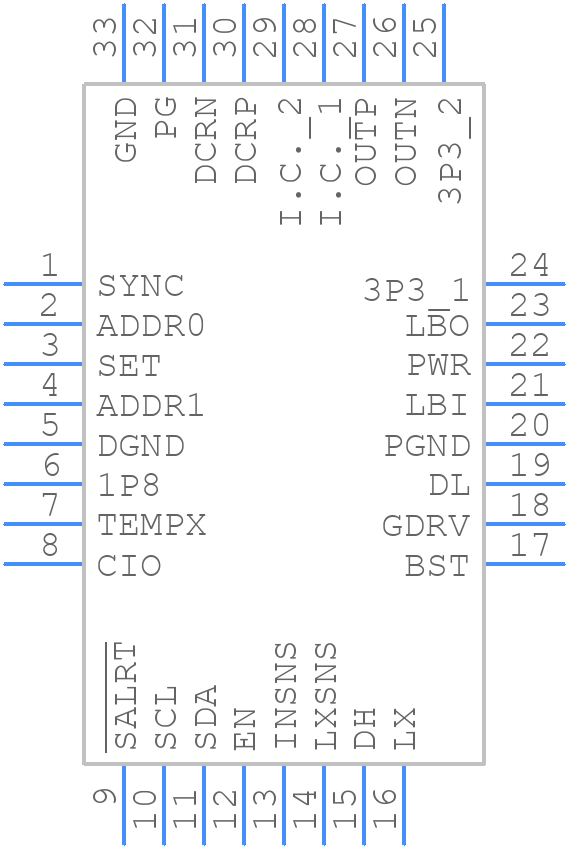

MAX15301AA02+CJK - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX15301AA02+CJK - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 TQFN-EP(T3255-4)_1
click to zoom
3D Models
MAX15301AA02+CJK - Analog Devices - 3D model - Quad Flat No-Lead - 32 TQFN-EP(T3255-4)_1
click to zoom

MAX15301AA02+CJK Details

  • Manufacturer Part Number:

    MAX15301AA02+CJK

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-11-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE FROM 0.5V TO 5.25V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    0.5 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX15301AA02+CJK Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX15301AA02+CJK involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence in the datasheet, and make sure the input voltage is stable and within the recommended range. Also, ensure that the EN pin is properly driven and the device is configured correctly through the I2C interface.
  • The MAX15301AA02+CJK has a thermal shutdown feature that protects the device from overheating. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the device away from high-power components. Also, follow the recommended operating conditions and avoid exceeding the maximum junction temperature.
  • To troubleshoot issues with the MAX15301AA02+CJK, start by reviewing the datasheet and application notes, and check the device's configuration and power-up sequence. Use a logic analyzer or oscilloscope to monitor the I2C bus and input/output signals, and check for any signs of noise or interference. Also, consult the device's errata sheet and contact Analog Devices' support team if necessary.
  • The MAX15301AA02+CJK is designed to meet EMI/EMC regulatory standards, but proper PCB layout, component selection, and shielding are still necessary to ensure compliance. Follow the recommended PCB layout and component selection guidelines, and use shielding and filtering components as necessary to reduce EMI emissions and susceptibility.
