- Stock & Prices $ Price & Stock for MAX15492GTA+
- Part Number MAX15492GTA+
- Manufacturer Analog Devices
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - T822+1c
- Released Date Jun 17, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX15492GTA+ Details
-
Manufacturer Part Number:
MAX15492GTA+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
8-LFCSP-2X2X0.75
-
Pin Count:
8
-
Manufacturer Package Code:
8-LFCSP-2X2X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2012-11-28
-
Manufacturer:
Analog Devices Inc
MAX15492GTA+ Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the MAX15492GTA+ is a 4-layer board with a solid ground plane on the bottom layer, and a split power plane on the top layer. This helps to reduce noise and improve power integrity. Additionally, it's recommended to keep the input and output capacitors close to the device and to use short, wide traces for the power lines.
-
To optimize the performance of the MAX15492GTA+ in a high-temperature environment, it's recommended to use a heat sink or a thermal pad to dissipate heat away from the device. Additionally, reducing the input voltage and output current can help to reduce the power dissipation and improve the device's reliability. It's also important to ensure good airflow around the device and to avoid thermal hotspots.
-
The maximum input voltage that can be applied to the MAX15492GTA+ is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage remains within the specified range.
-
To troubleshoot issues with the MAX15492GTA+, start by checking the input voltage and output current to ensure they are within the specified range. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check the output voltage ripple and noise. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.
-
Yes, the MAX15492GTA+ can be used in a battery-powered device. However, it's recommended to use a low-dropout linear regulator (LDO) or a switching regulator with a low quiescent current to minimize power consumption and extend battery life. Additionally, consider using a power management IC (PMIC) that integrates multiple power management functions, including voltage regulation, power switching, and battery charging.
Trust Checks
Community Provided
System Verified
Community Approved
MAX15492GTA+ Overview

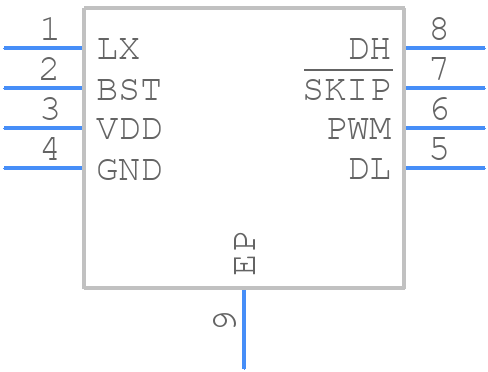

Use the download button to access the MAX15492GTA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15,
or try a keyword search, such as MOSFET Drivers
