MAX1554ETA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1554ETA+T - LED Driver, Boost (Step Up), 3.15V to 5.5V input, 10 kHz Switch. Frequency, 970 mA out, TDFN-8

Download MAX1554ETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

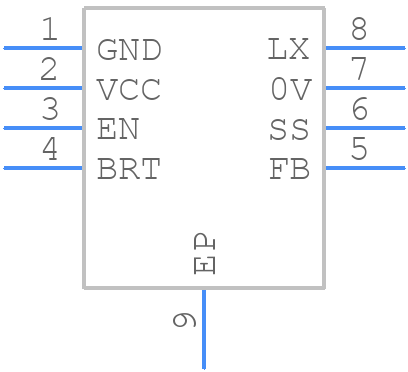

MAX1554ETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1554ETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2
click to zoom
3D Models
MAX1554ETA+T - Analog Devices - 3D model - Small Outline No-lead - T833+2
click to zoom

MAX1554ETA+T Details

  • Manufacturer Part Number:

    MAX1554ETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    HVSON, SOLCC8,.12,25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-07-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX1554ETA+T Frequently Asked Questions (FAQs)

  • The MAX1554ETA+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The MAX1554ETA+T has a thermal pad that must be connected to a thermal plane or heat sink to ensure proper thermal management. In high-power applications, it is recommended to use a heat sink with a thermal resistance of less than 10°C/W and to ensure good airflow around the device.
  • The MAX1554ETA+T requires input and output filtering to reduce noise and EMI. It is recommended to use a pi-filter (R-C-R) or a T-filter (L-C-L) at the input and output of the device, with component values chosen to match the specific application requirements.
  • To ensure the reliability and long-term stability of the MAX1554ETA+T in harsh environments, it is recommended to follow proper soldering and assembly techniques, use a conformal coating, and ensure that the device is operated within its recommended operating conditions. Additionally, it is recommended to perform environmental testing, such as temperature cycling and vibration testing, to validate the design.
  • The potential failure modes of the MAX1554ETA+T include overvoltage, overcurrent, and overheating. To mitigate these failure modes, it is recommended to use overvoltage protection, current limiting, and thermal protection circuits, as well as to ensure proper thermal management and layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1554ETA+T Overview

Use the download button to access the MAX1554ETA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX15, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
