MAX1595EUA50+T - Analog Devices

Description: Voltage Regulators - Switching Regulators Regulated 3.3/5.0V Step-Up/Step-Down

Download MAX1595EUA50+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

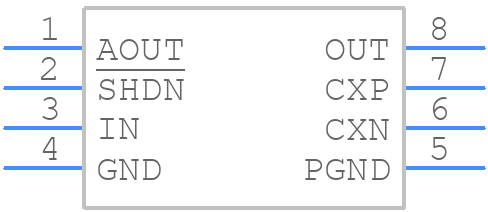

Symbol
MAX1595EUA50+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1595EUA50+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036
click to zoom
3D Models
MAX1595EUA50+T - Analog Devices - 3D model - Small Outline Packages - 21-0036
click to zoom

MAX1595EUA50+T Details

  • Manufacturer Part Number:

    MAX1595EUA50+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    TSSOP, TSSOP8,.19

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.125 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    4.8 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    TRIPLER

  • Switching Frequency-Max:

    1150 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX1595EUA50+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX1595EUA50+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX1595EUA50+T, make sure to follow the recommended power-up sequence, which is to apply VCC before applying VIN. During power-down, remove VIN before removing VCC. Also, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The maximum junction temperature that the MAX1595EUA50+T can withstand is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal performance and reliability.
  • Yes, the MAX1595EUA50+T is designed to withstand high-vibration environments. However, it's recommended to follow proper PCB mounting and assembly techniques to ensure the device is securely attached to the board. Additionally, consider using a vibration-resistant mounting method, such as a screw-down or adhesive-based mounting system.
  • To troubleshoot issues with the MAX1595EUA50+T, start by checking the input and output voltages, as well as the current consumption. Verify that the device is properly powered up and down, and that the input voltage is within the recommended range. Use an oscilloscope to check for any noise or oscillations on the input and output lines. If the issue persists, consult the datasheet and application notes for further guidance.
