MAX1658ESA+ - Analog Devices

Description: LDO, FIXED/ADJ, 3.3V/1.25-16V, NSOIC-8; Output Type:Adjustable, Fixed; Input Voltage Min:2.7V; Input Voltage Max:16.5V; Fixed Output Voltage Nom.:3.3V; Adjustable Output Voltage Min:1.25V; Adjustable Output Voltage Max:16V; MSL:- RoHS Compliant: Yes

Download MAX1658ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

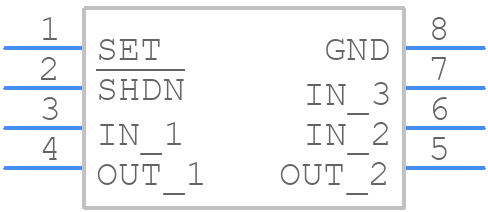

MAX1658ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1658ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX1658ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX1658ESA+ Details

  • Manufacturer Part Number:

    MAX1658ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    1.5 V

  • Dropout Voltage1-Nom:

    0.65 V

  • Input Voltage Absolute-Max:

    17 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.35 A

  • Output Voltage1-Max:

    3.4 V

  • Output Voltage1-Min:

    3.2 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    3.9 mm

MAX1658ESA+ Frequently Asked Questions (FAQs)

  • The MAX1658ESA+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and EMI.
  • To optimize the performance of the MAX1658ESA+, it is recommended to follow the application notes and design guidelines provided by Analog Devices Inc. Additionally, consider factors such as input and output impedance, noise reduction techniques, and thermal management to ensure optimal performance.
  • The MAX1658ESA+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device within the specified operating temperature range and to provide adequate thermal management, such as using a heat sink or thermal pad, to prevent overheating.
  • To troubleshoot issues with the MAX1658ESA+, start by reviewing the datasheet and application notes to ensure proper usage and configuration. Then, use debugging tools such as oscilloscopes and logic analyzers to identify the source of the issue. Common issues include incorrect input or output connections, noise or EMI interference, and thermal-related problems.
  • The MAX1658ESA+ has built-in ESD protection, but it is still recommended to follow proper ESD handling and storage procedures to prevent damage. Additionally, the device is designed to prevent latch-up, but it is still important to follow proper power-up and power-down sequencing to prevent latch-up conditions.
