MAX16712AWI+T - Analog Devices

Description: Switching Voltage Regulators 30A, 6.5-14V Integrated Switching Regulator

Download MAX16712AWI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

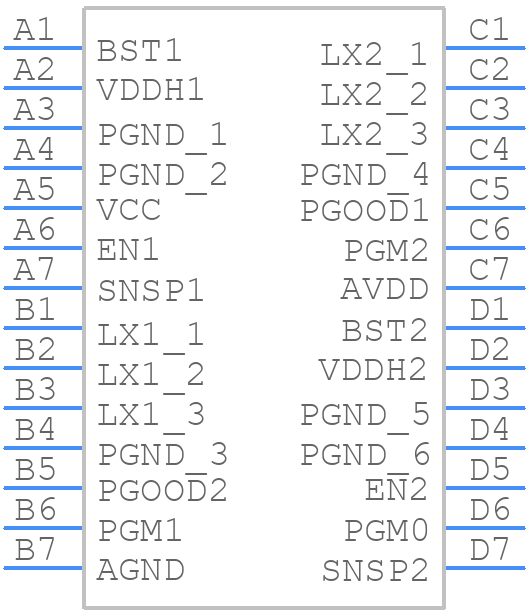

MAX16712AWI+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16712AWI+T - Analog Devices PCB footprint - BGA - BGA - W282D3Z+1
click to zoom
3D Models
MAX16712AWI+T - Analog Devices - 3D model - BGA - W282D3Z+1
click to zoom

MAX16712AWI+T Details

  • Manufacturer Part Number:

    MAX16712AWI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-WLCSP-N/A

  • Package Description:

    WLP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-11-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XBGA-B28

  • Length:

    3.468 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5.8 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA28,4X7,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.228 mm

MAX16712AWI+T Frequently Asked Questions (FAQs)

  • The MAX16712AWI+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve thermal performance.
  • The selection of input and output capacitors for the MAX16712AWI+T depends on the specific application and operating conditions. In general, it is recommended to use low-ESR capacitors with a value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. The datasheet provides more detailed guidance on capacitor selection.
  • The MAX16712AWI+T is rated for operation over a temperature range of -40°C to +125°C. However, the device may not operate within specifications at the extreme ends of this range, and derating may be necessary for high-temperature operation.
  • The MAX16712AWI+T requires a specific power-up sequence to ensure proper operation. It is recommended to follow the power-up sequence outlined in the datasheet, including applying a valid input voltage, waiting for the internal voltage regulator to stabilize, and then applying a valid enable signal.
  • Common failure modes of the MAX16712AWI+T include overvoltage, undervoltage, and overheating. These can be mitigated by using overvoltage protection devices, ensuring a stable input voltage, and providing adequate thermal management, such as heat sinking and airflow.
