Part Image

MAX1673ESA+ - Analog Devices

Description: Regulated, 125mA Output, Charge Pump DC-DC Inverter

Download MAX1673ESA+ Model

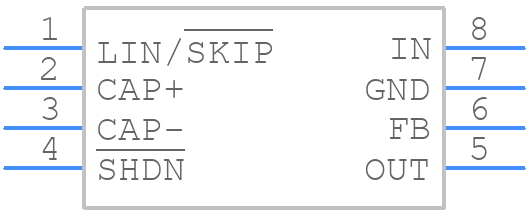

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX1673ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so
click to zoom
3D Models
MAX1673ESA+ - Analog Devices  - 3D model - Small Outline Packages - -8 so
click to zoom

MAX1673ESA+ Details

  • Manufacturer Part Number:

    MAX1673ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    1998-01-01

  • Manufacturer:

    Analog Devices Inc

  • Risk Rank:

    6.93

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.125 A

  • Output Voltage-Nom:

    -3.02 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    16 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    515 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1673ESA+ Overview

Use the download button to access the MAX1673ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems that are used in appl

Parts related to MAX1673ESA+

Showing 0 results

MAX1673ESA+ Alternates

Showing results

Image Part Number Model
Part Image MAX1673ESA+T Maxim Integrated Products

Switched Capacitor Regulator, 0.125A, 515kHz Switching Freq-Max, PDSO8, SO-8

Part Image MAX1673ESA Maxim Integrated Products

Switched Capacitor Regulator, 0.125A, 515kHz Switching Freq-Max, PDSO8, SO-8

Part Image MAX1673ESA-T Maxim Integrated Products

Switched Capacitor Regulator, 0.125A, 515kHz Switching Freq-Max, PDSO8, SO-8
