MAX1680ESA+ - Analog Devices

Description: MAX1680ESA+, Charge Pump Inverting, Step Up 125mA 348 kHz, -4.56 → -3.75 V, 8-Pin, SOIC

Download MAX1680ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

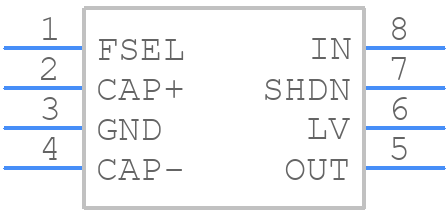

MAX1680ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1680ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+5
click to zoom
3D Models
MAX1680ESA+ - Analog Devices - 3D model - Small Outline Packages - S8+5
click to zoom

MAX1680ESA+ Details

  • Manufacturer Part Number:

    MAX1680ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012A, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.125 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    348 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1680ESA+ Frequently Asked Questions (FAQs)

  • The MAX1680ESA+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and EMI.
  • To optimize the performance of the MAX1680ESA+, it is recommended to follow the application notes and design guidelines provided by Analog Devices Inc. Additionally, consider factors such as input and output impedance, noise reduction, and thermal management to ensure optimal performance in your specific application.
  • The MAX1680ESA+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device within the specified operating temperature range and to provide adequate thermal management, such as using a heat sink or thermal pad, to prevent overheating.
  • To troubleshoot issues with the MAX1680ESA+, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Check for proper power supply, input and output connections, and signal integrity. Use oscilloscopes and other diagnostic tools to identify and isolate the issue.
  • The MAX1680ESA+ has built-in ESD protection, but it is still recommended to follow proper ESD handling and storage procedures to prevent damage to the device. Use ESD-safe materials and equipment, and ensure that the device is properly grounded during handling and assembly.
