MAX16822BASA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX16822BASA+ - LED Driver, Buck (Step Down), 6.5V to 65V input, 2 MHz Switch. Frequency, 350 mA out, NSOIC-8

Download MAX16822BASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

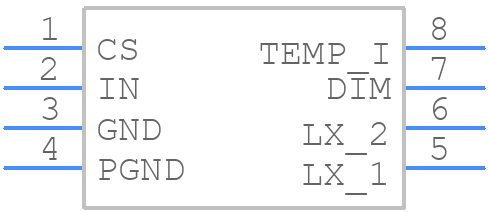

Symbol
MAX16822BASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16822BASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2
click to zoom
3D Models
MAX16822BASA+ - Analog Devices - 3D model - Small Outline Packages - S8+2
click to zoom

MAX16822BASA+ Details

  • Manufacturer Part Number:

    MAX16822BASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-05-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX16822BASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16822BASA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a separate ground plane to minimize noise and EMI.
  • The selection of external components depends on the specific application and operating conditions. Analog Devices provides a component selection guide in the datasheet, which includes formulas and recommendations for choosing the inductor, input and output capacitors, and resistors. Additionally, the MAX16822BASA+ evaluation kit can be used as a reference design.
  • The MAX16822BASA+ can handle input voltages up to 28V, and it has an internal overvoltage protection (OVP) circuit that limits the input voltage to 24V. If the input voltage exceeds 24V, the OVP circuit will shut down the device to prevent damage.
  • The MAX16822BASA+ has a built-in input voltage transient filter that helps to reduce the impact of input voltage transients and spikes. The device can also be used with external transient voltage suppressors (TVS) to further protect against high-energy transients.
  • The typical efficiency of the MAX16822BASA+ is around 95% at full load, and it varies with input voltage and output current. The efficiency is highest at higher input voltages and lower output currents. The datasheet provides detailed efficiency curves and tables to help designers estimate the efficiency for their specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16822BASA+ Overview

Use the download button to access the MAX16822BASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Display Drivers
