MAX16823AUE/V+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX16823AUE/V+T - LED Driver, Linear, 5.5V to 40V input, 3 Outputs, 39.1V/100 mA out, TSSOP-16

Download MAX16823AUE/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

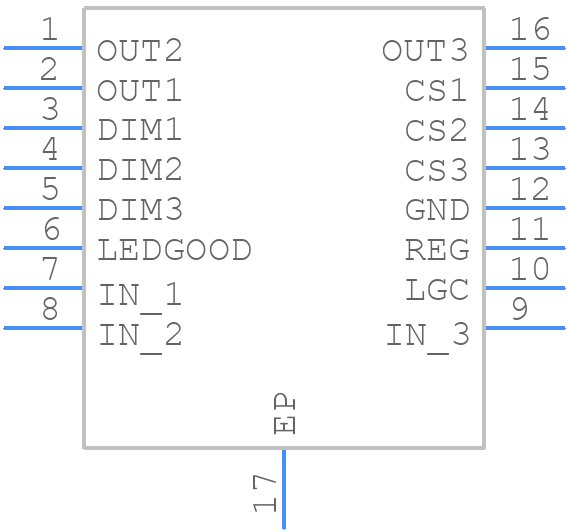

MAX16823AUE/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16823AUE/V+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16E+3-1
click to zoom
3D Models
MAX16823AUE/V+T - Analog Devices - 3D model - Small Outline Packages - U16E+3-1
click to zoom

MAX16823AUE/V+T Details

  • Manufacturer Part Number:

    MAX16823AUE/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-02-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    0.3 MHz

MAX16823AUE/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16823AUE/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The input capacitor selection for the MAX16823AUE/V+T depends on the input voltage, output voltage, and the desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value between 1uF to 10uF, and a voltage rating that is at least 1.5 times the input voltage. The capacitor should also have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • The MAX16823AUE/V+T can operate at a maximum ambient temperature of 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • The MAX16823AUE/V+T is a surface-mount device and can be susceptible to vibration. However, the device is designed to withstand moderate vibration levels. If the device is to be used in a high-vibration environment, it's essential to ensure that the PCB is properly secured, and the device is properly soldered to the PCB. Additionally, conformal coating or potting the device can help to improve its vibration resistance.
  • Troubleshooting issues with the MAX16823AUE/V+T involves a systematic approach. First, ensure that the device is properly powered and that the input voltage is within the recommended range. Check the output voltage and current to ensure that they are within the expected range. Use an oscilloscope to check for any unusual voltage or current waveforms. Check the PCB layout and ensure that it follows the recommended layout guidelines. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
