MAX16824AUE+ - Analog Devices

Description: Maxim MAX16824AUE+, LED Driver 9-Segments, 6.5 → 28 V, 16-Pin TSSOP

Download MAX16824AUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

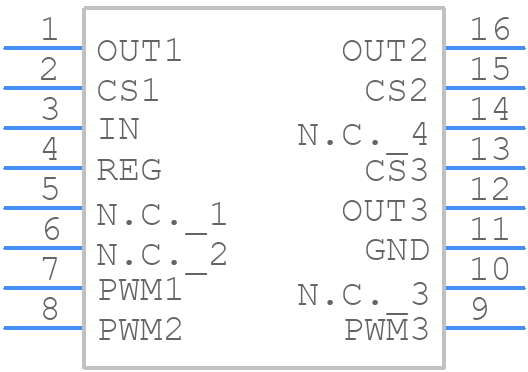

MAX16824AUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16824AUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin TSSOP
click to zoom
3D Models
MAX16824AUE+ - Analog Devices - 3D model - Small Outline Packages - 16-Pin TSSOP
click to zoom

MAX16824AUE+ Details

  • Manufacturer Part Number:

    MAX16824AUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    4.40 MM, ROHS COMPLIANT, MO-153ABT, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-11-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX16824AUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16824AUE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up and initialization, make sure to follow the power-up sequence specified in the datasheet. Apply the power supply to the device in the correct order (VCC, then VIN), and ensure that the input voltage is within the recommended range. Also, make sure to tie the EN pin high to enable the device, and wait for the POR (Power-On Reset) signal to settle before starting to use the device.
  • The MAX16824AUE+ is a high-current device that can deliver up to 2A of output current. However, the maximum current delivery is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and ensure that it is properly heatsinked to prevent overheating.
  • To troubleshoot issues with the MAX16824AUE+, start by checking the power supply and input voltage to ensure they are within the recommended range. Verify that the device is properly enabled and configured. Use an oscilloscope to check the output voltage and current waveforms. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
  • The MAX16824AUE+ is a versatile device that can be used in a wide range of applications. However, it's essential to review the device's specifications and ensure that they meet your application's requirements. Check the input voltage range, output voltage range, current capability, and operating temperature range to ensure they are compatible with your application. Consult with Analog Devices' support team or a qualified engineer if you're unsure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16824AUE+ Overview

Use the download button to access the MAX16824AUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
