MAX16904SAUE33/V+ - Analog Devices

Description: 2.1MHz, High-Voltage, 600mA Mini-Buck Converter

Download MAX16904SAUE33/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

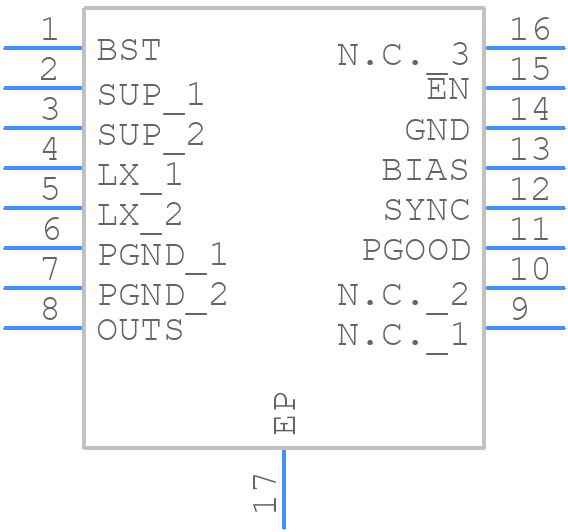

Symbol
MAX16904SAUE33/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16904SAUE33/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16E+3
click to zoom
3D Models
MAX16904SAUE33/V+ - Analog Devices - 3D model - Small Outline Packages - U16E+3
click to zoom

MAX16904SAUE33/V+ Details

  • Manufacturer Part Number:

    MAX16904SAUE33/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-09-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    3.3825 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.035 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX16904SAUE33/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16904SAUE33/V+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper power-up and initialization of the MAX16904SAUE33/V+, make sure to follow the recommended power-up sequence, which involves applying the input voltage (VIN) before the enable signal (EN). Also, ensure that the input voltage is within the recommended range and that the device is properly bypassed with capacitors.
  • The maximum output current capability of the MAX16904SAUE33/V+ is 3A. However, it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation and to prevent overheating.
  • To troubleshoot issues with the MAX16904SAUE33/V+, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly powered up and initialized, and that the input and output capacitors are properly sized and placed. Also, check for any signs of overheating, such as excessive temperature rise or thermal shutdown. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX16904SAUE33/V+ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage based on the ambient temperature to ensure reliable operation and to prevent overheating. Additionally, ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
