MAX16910CASA9/V+ - Analog Devices

Description: Maxim MAX16910CASA9/V+, LDO Voltage Regulator, Adjustable 200mA, 3.3 → 5 V, 8-Pin SOIC

Download MAX16910CASA9/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

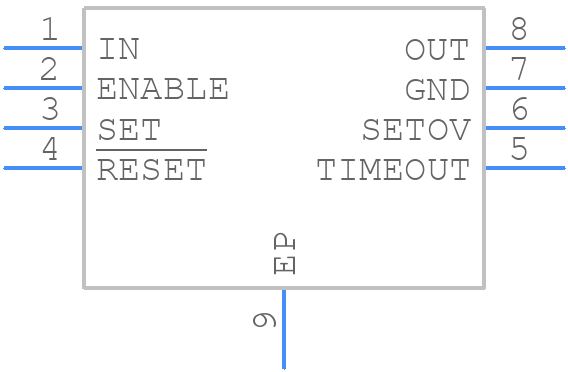

MAX16910CASA9/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16910CASA9/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0111_E (S8E-12)
click to zoom
3D Models
MAX16910CASA9/V+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0111_E (S8E-12)
click to zoom

MAX16910CASA9/V+ Details

  • Manufacturer Part Number:

    MAX16910CASA9/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.28 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Load Regulation-Max:

    0.012%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.68 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

MAX16910CASA9/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16910 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR (Equivalent Series Resistance) and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A 10uF to 47uF ceramic capacitor is recommended. The capacitor values and types may vary depending on the specific application and requirements.
  • The MAX16910 is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • The MAX16910 requires a proper power-up sequence to ensure reliable operation. The device should be powered up with a monotonic voltage ramp, and the input voltage should reach the minimum operating voltage (VCC) before the enable pin is asserted. The device's internal voltage regulators and bias circuits require a certain amount of time to stabilize before the device is fully operational.
  • The MAX16910 is designed to operate from a single input voltage source ranging from 4.5V to 14V. However, the device's performance and efficiency may vary depending on the input voltage. It's recommended to operate the device from a stable input voltage source within the specified range for optimal performance and reliability.
