MAX16910CATA8/V+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX16910CATA8/V+T - LINEAR VOLT REG, ADJ, 0.2A, TDFN-8

Download MAX16910CATA8/V+T Model

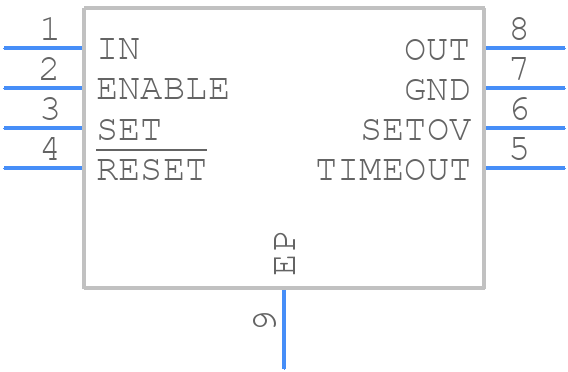

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX16910CATA8/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX16910CATA8/V+T
click to zoom
3D Models
MAX16910CATA8/V+T - Analog Devices  - 3D model - Small Outline No-lead - MAX16910CATA8/V+T
click to zoom

MAX16910CATA8/V+T Details

  • Manufacturer Part Number:

    MAX16910CATA8/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.28 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.001%

  • Load Regulation-Max:

    0.012%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

MAX16910CATA8/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16910CATA8/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input and output capacitors for the MAX16910CATA8/V+T should be selected based on the specific application requirements. A general rule of thumb is to use ceramic capacitors with a value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. The capacitor voltage rating should be at least 2x the maximum input voltage.
  • The MAX16910CATA8/V+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation.
  • To troubleshoot issues with the MAX16910CATA8/V+T, start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Check the PCB layout for any signs of noise or EMI, and verify that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the output voltage ripple and noise, and check for any signs of oscillation or instability.
  • Yes, the MAX16910CATA8/V+T is suitable for high-reliability and automotive applications. It has been qualified to the AEC-Q100 standard for automotive applications, and it meets the requirements for high-reliability applications. However, it's recommended to consult with Analog Devices Inc for specific guidance on using the device in these applications.
