MAX16910CATA9/V+T footprint, schematic symbol and 3D model by Analog Devices

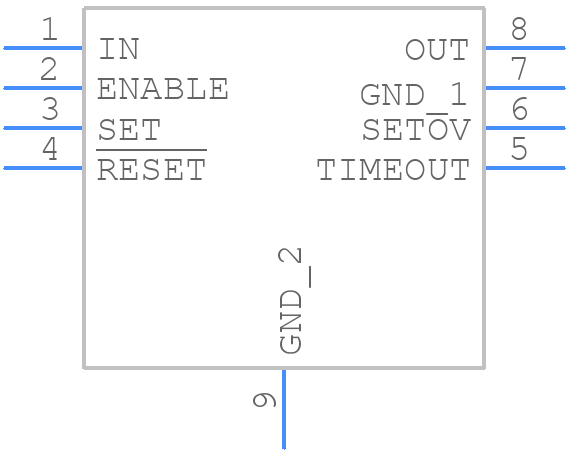

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX16910CATA9/V+T
Part Number MAX16910CATA9/V+T
Manufacturer Analog Devices
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - T833+2
Released Date Oct 12, 2020
Last Modified Date Jul 2, 2025 1:57 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX16910CATA9/V+T Details

Manufacturer Part Number:
MAX16910CATA9/V+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
8-LFCSP-3X3X0.75
Package Description:
TDFN-8
Pin Count:
8
Manufacturer Package Code:
8-LFCSP-3X3X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2009-08-19
Manufacturer:
Analog Devices Inc
YTEOL:
10
Adjustability:
FIXED
Dropout Voltage1-Max:
0.6 V
Dropout Voltage1-Nom:
0.28 V
Input Voltage Absolute-Max:
45 V
Input Voltage-Max:
30 V
Input Voltage-Min:
6 V
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Length:
3 mm
Line Regulation-Max:
0.001%
Load Regulation-Max:
0.012%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
0.2 A
Output Voltage1-Max:
5.1 V
Output Voltage1-Min:
4.9 V
Output Voltage1-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.11,25
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Technology:
BCDMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
3 mm

MAX16910CATA9/V+T Frequently Asked Questions (FAQs)

A good PCB layout for the MAX16910CATA9/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The input and output capacitors for the MAX16910CATA9/V+T should be selected based on the specific application requirements. A general guideline is to use X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be chosen to ensure that the impedance of the capacitor is less than the output impedance of the device at the switching frequency.
The MAX16910CATA9/V+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation.
Proper thermal management of the MAX16910CATA9/V+T involves ensuring good airflow around the device, using a heat sink if necessary, and keeping the device away from other heat sources. The thermal pad of the device should be connected to a solid ground plane to help dissipate heat. Additionally, the device's thermal shutdown feature can be used to prevent overheating.
The recommended input voltage range for the MAX16910CATA9/V+T is 4.5V to 14V, but the device can operate with input voltages as low as 4V and as high as 16V. However, the output voltage and current ratings may be affected at input voltages outside the recommended range.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MAX16910CATA9/V+T Overview

Use the download button to access the MAX16910CATA9/V+T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Linear Regulator ICs
