MAX1692EUB+T - Analog Devices

Description: Low-Noise, 5.5V-Input, PWM Step-Down Regulator, 10uMAX

Download MAX1692EUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

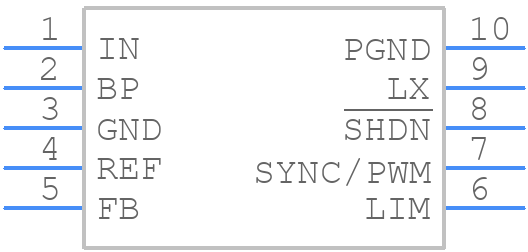

MAX1692EUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1692EUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - uMAX-10-1
click to zoom
3D Models
MAX1692EUB+T - Analog Devices - 3D model - Small Outline Packages - uMAX-10-1
click to zoom

MAX1692EUB+T Details

  • Manufacturer Part Number:

    MAX1692EUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    1.11 MM HEIGHT, UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    840 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX1692EUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX1692EUB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input and output capacitors for the MAX1692EUB+T should be selected based on the specific application requirements. A general guideline is to use low-ESR capacitors with a value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. The capacitor selection should also consider the voltage rating, ripple current rating, and temperature rating.
  • The MAX1692EUB+T can operate in an ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it's recommended to derate the device's specifications accordingly.
  • The MAX1692EUB+T has a specific power-up and power-down sequence that should be followed to ensure proper operation. The device should be powered up by applying the input voltage to the VIN pin, followed by the enable signal to the EN pin. During power-down, the enable signal should be removed first, followed by the input voltage.
  • The recommended input voltage range for the MAX1692EUB+T is 4.5V to 14V. Operating the device outside of this range may affect its performance and reliability.
