MAX16990ATCC/V+ - Analog Devices

Description: Boost, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 12-TQFN (3x3)

Download MAX16990ATCC/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

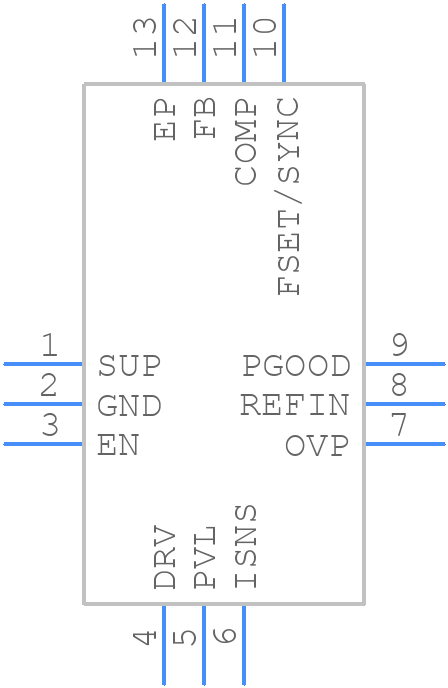

MAX16990ATCC/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16990ATCC/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1233+4_2025
click to zoom
3D Models
MAX16990ATCC/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T1233+4_2025
click to zoom

MAX16990ATCC/V+ Details

  • Manufacturer Part Number:

    MAX16990ATCC/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-04-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16990ATCC/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX16990ATCC/V+ is to keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To optimize the performance of the MAX16990ATCC/V+, you should consider the input voltage range, output voltage requirements, and load current requirements of your application. You may need to adjust the values of the input and output capacitors, and the inductor value to achieve the desired performance. You can use simulation tools such as SPICE or LTspice to model and optimize the performance of the device.
  • The maximum ambient temperature rating for the MAX16990ATCC/V+ is 125°C. However, the device's performance and reliability may be affected at high temperatures, so it's recommended to operate the device within a temperature range of -40°C to 105°C for optimal performance.
  • Yes, the MAX16990ATCC/V+ is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and it's also suitable for use in high-reliability industrial and medical applications.
  • To troubleshoot issues with the MAX16990ATCC/V+, you should first check the input voltage, output voltage, and load current to ensure they are within the recommended operating range. You should also check the PCB layout and component values to ensure they meet the recommended guidelines. If the issue persists, you can use a oscilloscope or a logic analyzer to debug the device's operation and identify the root cause of the issue.
