MAX16990ATCD/V+T footprint, schematic symbol and 3D model by Analog Devices

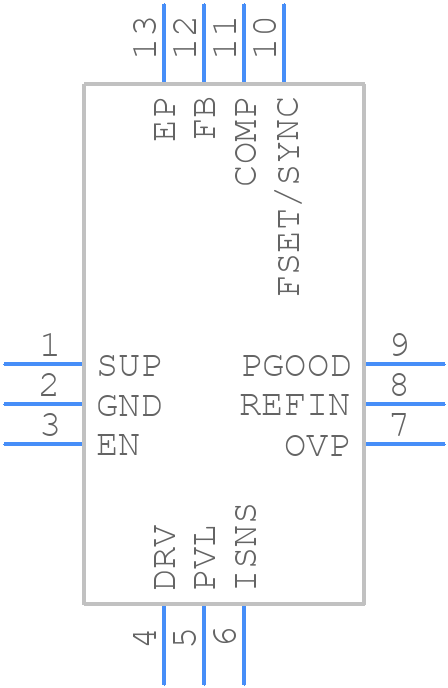

Symbol

click to zoom

PCB Footprints

MAX16990ATCD/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1233-4

click to zoom

3D Models

MAX16990ATCD/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T1233-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX16990ATCD/V+T
Part Number MAX16990ATCD/V+T
Manufacturer Analog Devices
Pin Count 13
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - T1233-4
Released Date May 7, 2020
Last Modified Date Nov 5, 2025 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX16990ATCD/V+T Details

Manufacturer Part Number:
MAX16990ATCD/V+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
12-LFCSP-3X3X0.75
Package Description:
TQFN-12
Pin Count:
12
Manufacturer Package Code:
12-LFCSP-3X3X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2013-04-02
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
14 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
1.3 mA
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

MAX16990ATCD/V+T Frequently Asked Questions (FAQs)

A good PCB layout for the MAX16990ATCD/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The input capacitors for the MAX16990ATCD/V+T should be chosen based on the input voltage range, output voltage, and desired ripple voltage. A general rule of thumb is to use capacitors with a capacitance value of 10uF to 22uF, and a voltage rating of 1.5 to 2 times the input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
The MAX16990ATCD/V+T can operate in ambient temperatures ranging from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it's recommended to derate the device's output current and voltage accordingly.
To ensure proper power-up and power-down of the MAX16990ATCD/V+T, it's recommended to follow a soft-start sequence, where the input voltage is ramped up slowly to the desired level. During power-down, the input voltage should be ramped down slowly to prevent any voltage spikes or oscillations. Additionally, it's recommended to use a power-on reset (POR) circuit to ensure the device is properly reset during power-up.
The recommended output capacitor value for the MAX16990ATCD/V+T depends on the output voltage and desired ripple voltage. A general rule of thumb is to use an output capacitor with a capacitance value of 10uF to 47uF, and a voltage rating of 1.5 to 2 times the output voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
