MAX17112ETB+T - Analog Devices

Description: Switching Voltage Regulators Step-Up DC/DC Converter

Download MAX17112ETB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

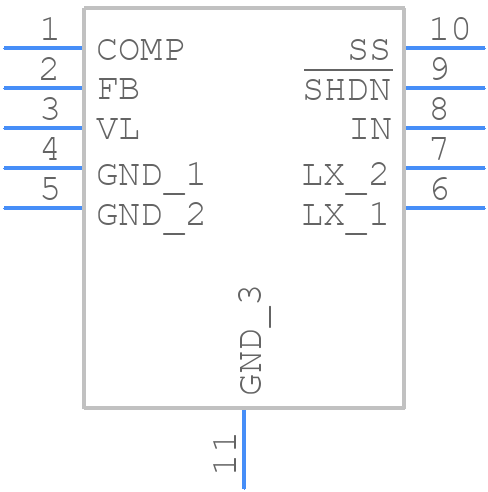

MAX17112ETB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17112ETB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX17112ETB+T
click to zoom
3D Models
MAX17112ETB+T - Analog Devices - 3D model - Small Outline No-lead - MAX17112ETB+T
click to zoom

MAX17112ETB+T Details

  • Manufacturer Part Number:

    MAX17112ETB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO229-WEED-3, TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-02-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.3 A

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    2.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17112ETB+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17112ETB+T can be found in the MAX17112 Evaluation Kit documentation, which provides a detailed layout guide and PCB design files. Additionally, Analog Devices provides a layout checklist in the datasheet that highlights critical components and layout considerations.
  • To optimize the performance of the MAX17112ETB+T, it's essential to follow the recommended layout and placement guidelines, ensure proper power supply decoupling, and optimize the input and output filtering. Additionally, Analog Devices provides application notes and design guides that provide specific guidance for various applications, such as battery-powered systems and automotive systems.
  • The MAX17112ETB+T has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications, including automotive and industrial systems.
  • Yes, the MAX17112ETB+T is designed to operate in high-vibration environments, making it suitable for applications such as automotive and industrial systems. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • To troubleshoot issues with the MAX17112ETB+T, start by reviewing the datasheet and application notes to ensure that the device is properly configured and laid out. Use oscilloscopes and other diagnostic tools to measure the input and output signals, and check for any signs of overheating or damage. Analog Devices also provides technical support and resources, including FAQs and application notes, to help troubleshoot common issues.
