MAX17227AANT+T - Analog Devices

Description: 400mV to 5.5V Input, 2A nanoPower Boost Converter with Short-Circuit Protection and True Shutdown

Download MAX17227AANT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

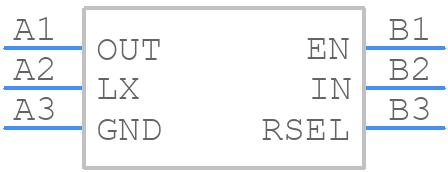

Symbol
MAX17227AANT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17227AANT+T - Analog Devices PCB footprint - BGA - BGA - N60O1+1
click to zoom
3D Models
MAX17227AANT+T - Analog Devices - 3D model - BGA - N60O1+1
click to zoom

MAX17227AANT+T Details

  • Manufacturer Part Number:

    MAX17227AANT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-WLCSP-N/A

  • Package Description:

    WLP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.95 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.578 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    2.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.888 mm

MAX17227AANT+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17227AANT+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also recommended to place the device near the power source and to use a low-ESR capacitor for the output filter.
  • To optimize the performance of the MAX17227AANT+T, you should consider factors such as the input voltage range, output voltage, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are properly selected. Additionally, you can use simulation tools and models provided by Analog Devices to simulate the device's performance in your specific application.
  • The MAX17227AANT+T has a maximum junction temperature of 150°C. To ensure reliable operation, you should ensure that the device is operated within its recommended operating conditions, and that the PCB is designed to provide adequate thermal dissipation. You can use thermal simulation tools to estimate the device's junction temperature in your specific application.
  • To troubleshoot issues with the MAX17227AANT+T, you should first consult the datasheet and application notes to ensure that the device is properly configured and operated within its recommended operating conditions. You can also use oscilloscopes and other test equipment to measure the device's input and output voltages, and to identify any anomalies. Additionally, you can contact Analog Devices' technical support for further assistance.
  • The MAX17227AANT+T is designed to meet EMI and EMC standards, but you should still take precautions to minimize electromagnetic interference and ensure electromagnetic compatibility in your specific application. This includes using proper shielding, filtering, and grounding techniques, as well as following good PCB design practices.
