MAX17501AATB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17501AATB+T - Synchronous Buck Step Down Switching Regulator, Fixed, 4.5-60V In, 3.3V/0.5A Out, 600kHz, TDFN-EP-10

Download MAX17501AATB+T Model

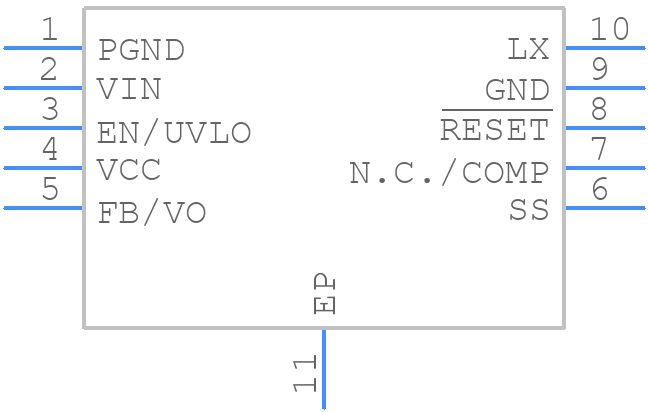

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX17501AATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1032N+1_1
click to zoom
3D Models
MAX17501AATB+T - Analog Devices  - 3D model - Small Outline No-lead - T1032N+1_1
click to zoom

MAX17501AATB+T Details

  • Manufacturer Part Number:

    MAX17501AATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.86 A

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    RECTANGULAR

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    640 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17501AATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17501AATB+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The choice of input and output capacitors for the MAX17501AATB+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF to 22uF capacitors for both input and output.
  • The MAX17501AATB+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and consider additional thermal management measures for high-temperature applications.
  • Yes, the MAX17501AATB+T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and has a high MTBF (mean time between failures) rating. However, it's essential to follow proper design and manufacturing guidelines, including using a robust PCB design, selecting high-reliability components, and implementing adequate testing and validation procedures.
  • To troubleshoot common issues with the MAX17501AATB+T, start by checking the input voltage, output load, and PCB layout for any anomalies. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
