MAX17502GATB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17502GATB+T - DC-DC Switching (Step Down) Regulator, Adjustable, 600 kHz, 4.5V-60Vin, 0.9V-55.2V/1 A out, TDFN-10

Download MAX17502GATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

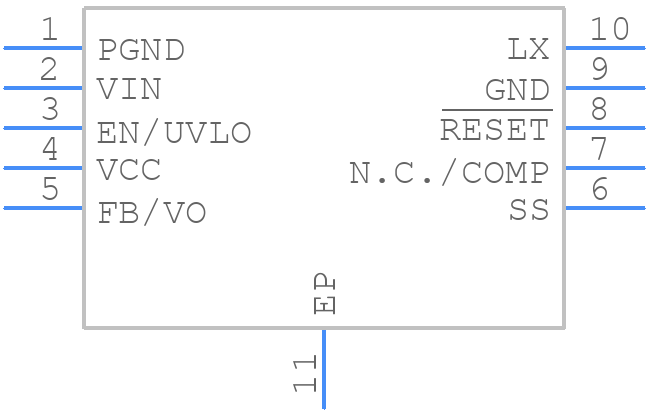

MAX17502GATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17502GATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1032N+1-4
click to zoom
3D Models
MAX17502GATB+T - Analog Devices - 3D model - Small Outline No-lead - T1032N+1-4
click to zoom

MAX17502GATB+T Details

  • Manufacturer Part Number:

    MAX17502GATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-05-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    55.2 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    6.75 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    640 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17502GATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17502GATB+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The choice of input and output capacitors for the MAX17502GATB+T depends on the specific application requirements. In general, low-ESR ceramic capacitors with a value of 10uF to 22uF are recommended for the input capacitor, while a 10uF to 47uF ceramic capacitor is recommended for the output capacitor. The capacitor values should be chosen based on the desired output voltage ripple and transient response.
  • The MAX17502GATB+T has an operating ambient temperature range of -40°C to +125°C, but the device can be operated up to +150°C with derating. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliable operation and to prevent damage to the device.
  • The MAX17502GATB+T has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor value between the OVP pin and the input voltage. Additionally, an external OVP circuit can be implemented using a voltage comparator and a switch to disconnect the input voltage in case of an overvoltage condition.
  • The recommended input voltage range for the MAX17502GATB+T is 2.7V to 5.5V, but the device can operate with an input voltage as low as 2.3V. However, the output voltage regulation and efficiency may be affected at lower input voltages.
