MAX17506ATP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17506ATP+ - DC/DC CONV, SYNC BUCK, 2.2MHZ, TQFN-20

Download MAX17506ATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

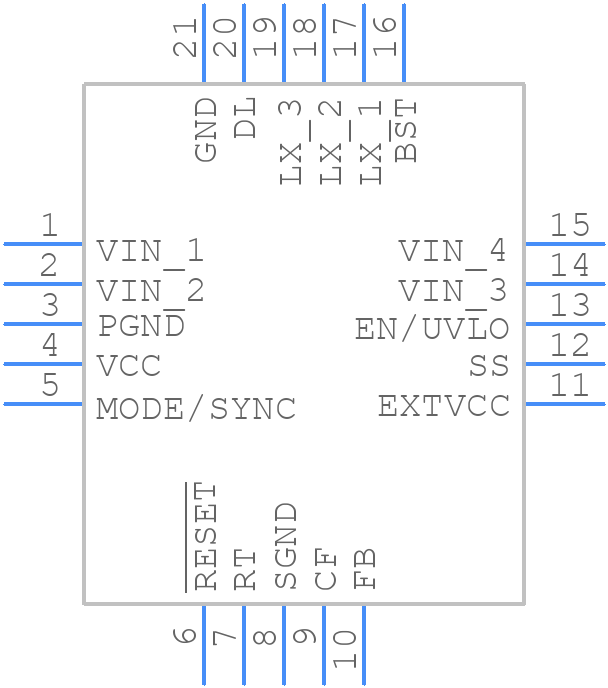

MAX17506ATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17506ATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX17506ATP+
click to zoom
3D Models
MAX17506ATP+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX17506ATP+
click to zoom

MAX17506ATP+ Details

  • Manufacturer Part Number:

    MAX17506ATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-12-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN PFM MODE; OPERATES IN ADJUSTABLE MODE FROM 0.9V TO 54V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    9.1 A

  • Output Voltage-Max:

    54 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX17506ATP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17506ATP+ involves keeping the input capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the input capacitors. Additionally, it is recommended to place the device near the power source and to use a local decoupling capacitor between the VIN pin and the GND pin.
  • To optimize the performance of the MAX17506ATP+, it is recommended to follow the layout and placement guidelines, choose the correct input capacitors, and adjust the compensation components (R1, R2, C1, and C2) based on the specific application requirements. Additionally, it is recommended to simulate the design using SPICE models and to perform thorough testing and characterization.
  • The MAX17506ATP+ has an input voltage range of 4.5V to 60V and an output current capability of up to 500mA. However, the device may not be able to deliver the full 500mA output current at the highest input voltage, and the output current capability may be limited by the thermal performance of the device and the PCB design.
  • The MAX17506ATP+ has built-in input voltage transient protection and can withstand input voltage transients up to 100V for 100ms. However, it is still recommended to add external input voltage transient protection components, such as TVS diodes or varistors, to protect the device from high-energy transients and spikes.
  • The recommended operating temperature range for the MAX17506ATP+ is -40°C to +125°C. However, the device may still operate outside of this range, but with reduced performance and reliability.
