MAX17510ATB+T - Analog Devices

Description: Low-Voltage DDR Linear Regulators

Download MAX17510ATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

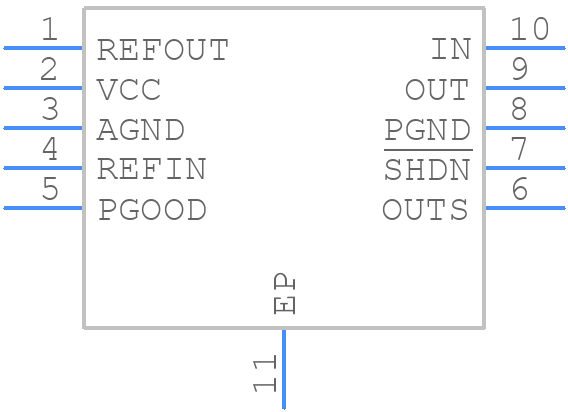

MAX17510ATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17510ATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1
click to zoom
3D Models
MAX17510ATB+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1
click to zoom

MAX17510ATB+T Details

  • Manufacturer Part Number:

    MAX17510ATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-05-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17510ATB+T Frequently Asked Questions (FAQs)

  • The MAX17510ATB+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it is recommended to place the device near the power source and to use a low-ESR capacitor for the input capacitor.
  • The selection of input and output capacitors for the MAX17510ATB+T depends on several factors, including the input voltage, output voltage, and desired ripple and noise performance. A general rule of thumb is to use a low-ESR capacitor with a value of 10uF to 22uF for the input capacitor and a capacitor with a value of 10uF to 47uF for the output capacitor. It is also important to consider the capacitor's voltage rating, temperature rating, and physical size.
  • The MAX17510ATB+T can operate in ambient temperatures ranging from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to follow the guidelines provided in the datasheet for thermal management and derating.
  • To troubleshoot issues with the MAX17510ATB+T, it is recommended to follow a systematic approach, including checking the input voltage, output voltage, and current, as well as the device's thermal performance. It is also important to verify that the device is properly soldered and that the layout and placement meet the guidelines provided in the datasheet. Additionally, it may be helpful to consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX17510ATB+T is designed to meet the requirements of high-reliability applications, including aerospace and automotive systems. The device is built with high-quality materials and manufacturing processes, and it has undergone rigorous testing and qualification to ensure its reliability and performance. However, it is recommended to follow the guidelines provided in the datasheet and to consult with Analog Devices Inc. for specific requirements and qualifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17510ATB+T Overview

Use the download button to access the MAX17510ATB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Other Regulators
