MAX17532ATB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17532ATB+T - DC-DC Switching Step Down Regulator, Adjustable, 4V-42Vin, 2.2 MHz, 0.8V-37.8V/100 mAout, TDFN-10

Download MAX17532ATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

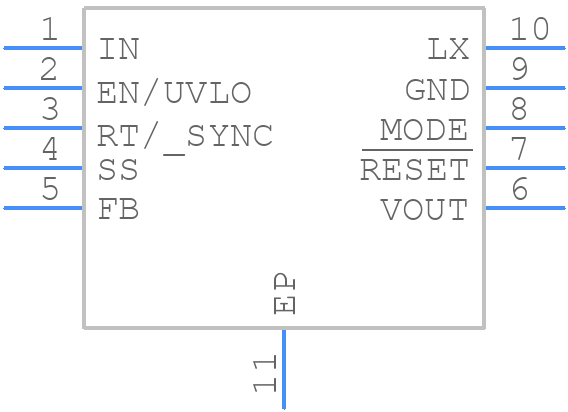

MAX17532ATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17532ATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1032N+1
click to zoom
3D Models
MAX17532ATB+T - Analog Devices - 3D model - Small Outline No-lead - T1032N+1
click to zoom

MAX17532ATB+T Details

  • Manufacturer Part Number:

    MAX17532ATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    37.8 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.76 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17532ATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17532ATB+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The choice of input and output capacitors for the MAX17532ATB+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF to 22uF capacitors for both input and output.
  • The MAX17532ATB+T is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a narrower temperature range if possible.
  • Yes, the MAX17532ATB+T is suitable for high-reliability and automotive applications. It's built with high-reliability materials and manufacturing processes, and it's qualified to AEC-Q100 Grade 1 standards. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the necessary standards and regulations for the target application.
  • To troubleshoot common issues with the MAX17532ATB+T, start by checking the input voltage, output load, and PCB layout for any errors or inconsistencies. Verify that the device is properly soldered and that there are no signs of physical damage. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, or contact Analog Devices Inc. for technical support.
