MAX17541GATB+T - Analog Devices

Description: Switching Voltage Regulators 40V, 0.5A, Ultra-Small, High efficiency, Synchronous Step-Down DC/DC converter

Download MAX17541GATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

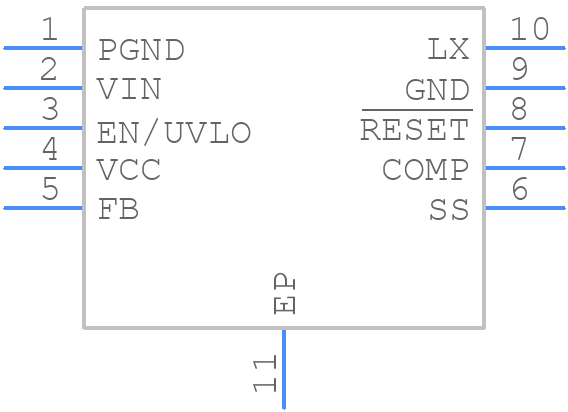

MAX17541GATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17541GATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1032N+1-2
click to zoom
3D Models
MAX17541GATB+T - Analog Devices - 3D model - Small Outline No-lead - T1032N+1-2
click to zoom

MAX17541GATB+T Details

  • Manufacturer Part Number:

    MAX17541GATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-11-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    37.72 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    6.75 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    640 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17541GATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17541GATB+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The selection of input and output capacitors for the MAX17541GATB+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX17541GATB+T is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To ensure proper power-up and power-down of the MAX17541GATB+T, it's recommended to follow a controlled power-up sequence. The device should be powered up by applying the input voltage (VIN) first, followed by the enable signal (EN). During power-down, the enable signal should be turned off before removing the input voltage. Additionally, it's recommended to add a soft-start circuit to limit the inrush current during power-up.
  • The recommended input voltage range for the MAX17541GATB+T is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability. It's recommended to use a voltage regulator or a power supply with a tight voltage tolerance to ensure the input voltage remains within the recommended range.
