MAX17543ATP+T - Analog Devices

Description: Switching Voltage Regulators 2.5A, 60V, Synchronous Buck Regulator

Download MAX17543ATP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

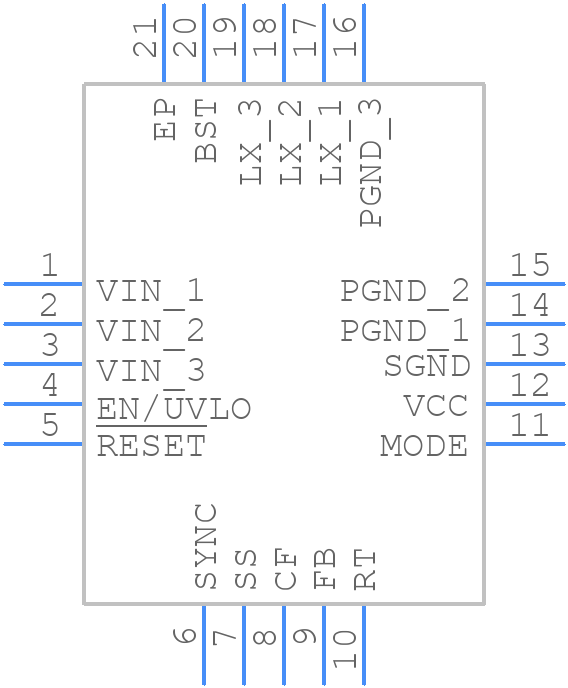

Symbol
MAX17543ATP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17543ATP+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044+4
click to zoom
3D Models
MAX17543ATP+T - Analog Devices - 3D model - Quad Flat No-Lead - T2044+4
click to zoom

MAX17543ATP+T Details

  • Manufacturer Part Number:

    MAX17543ATP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-09-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PWM/PFM

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    37.8 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    SQUARE

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17543ATP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17543ATP+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 22uF. The capacitor selection should be based on the specific application requirements, such as output voltage ripple and transient response.
  • The MAX17543ATP+T has an operating ambient temperature range of -40°C to +125°C, but the maximum junction temperature should not exceed 150°C. The device should be derated for temperatures above 85°C to ensure reliable operation.
  • The MAX17543ATP+T has a built-in OVP and UVLO feature. The OVP threshold is set to 12.6V, and the UVLO threshold is set to 4.2V. The device will shut down if the input voltage exceeds the OVP threshold or falls below the UVLO threshold.
  • The MAX17543ATP+T has a maximum input voltage range of 5.5V to 12V, but it can operate down to 4.2V with reduced performance. The device should not be operated above 12V to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17543ATP+T Overview

Use the download button to access the MAX17543ATP+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
