MAX17546ATP+ - Analog Devices

Description: Switching Voltage Regulators 42V, 5A Synchronous Buck Regulator

Download MAX17546ATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

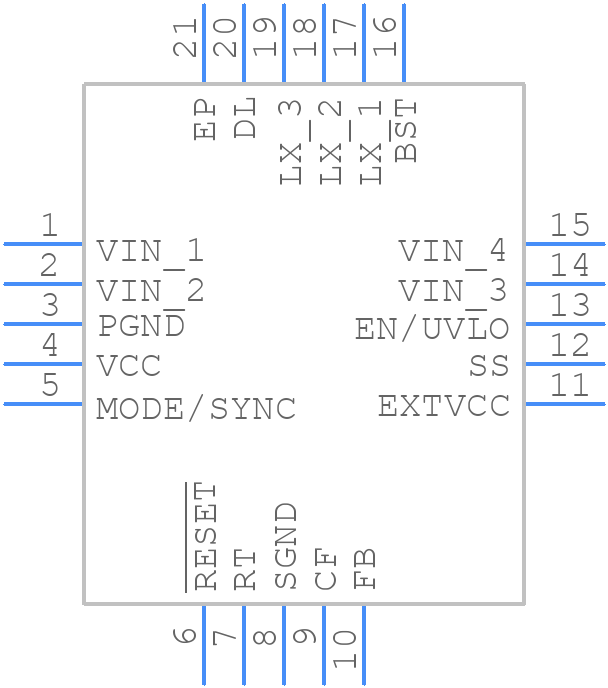

MAX17546ATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17546ATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20 pin QFN
click to zoom
3D Models
MAX17546ATP+ - Analog Devices - 3D model - Quad Flat No-Lead - 20 pin QFN
click to zoom

MAX17546ATP+ Details

  • Manufacturer Part Number:

    MAX17546ATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-03-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE, ALSO OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 37.8V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    9.1 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX17546ATP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17546ATP+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane for the device to reduce noise and interference.
  • The selection of input and output capacitors for the MAX17546ATP+ depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the output voltage and current requirements.
  • The MAX17546ATP+ has an operating ambient temperature range of -40°C to +125°C. However, the device can be operated at a maximum junction temperature of 150°C. It's essential to ensure that the device is properly cooled to prevent overheating and ensure reliable operation.
  • The MAX17546ATP+ has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor value between the OVP pin and the input voltage. The device will shut down if the input voltage exceeds the OVP threshold.
  • The recommended input voltage range for the MAX17546ATP+ is 4.5V to 60V. However, the device can operate with input voltages as low as 3.5V and as high as 65V. It's essential to ensure that the input voltage is within the recommended range to ensure reliable operation and prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17546ATP+ Overview

Use the download button to access the MAX17546ATP+ schematic symbol, PCB footprint, and 3D model.
