MAX17573ATG+T - Analog Devices

Description: 4.5V to 60V, 4A, High-Efficiency, Synchronous Step-Down DC-DC Converter

Download MAX17573ATG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

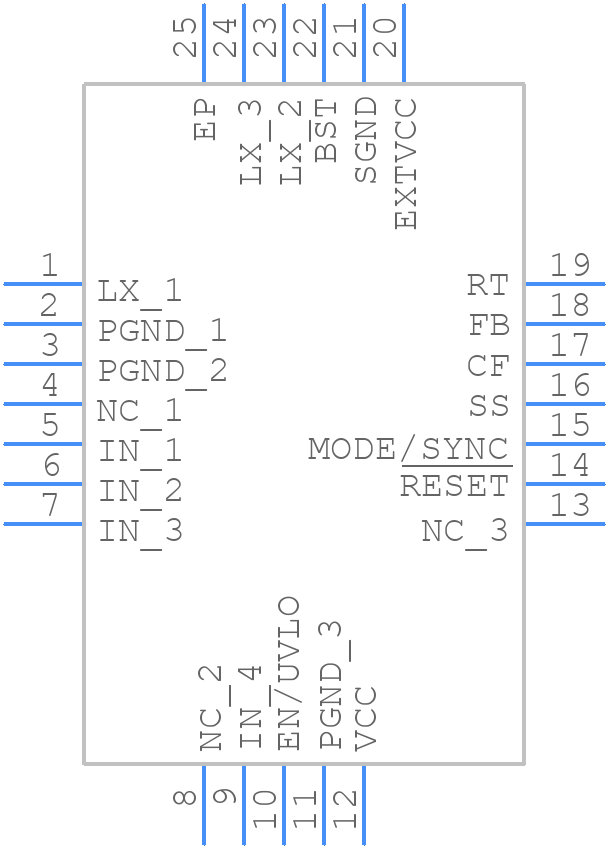

MAX17573ATG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17573ATG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2445+2C
click to zoom
3D Models
MAX17573ATG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2445+2C
click to zoom

MAX17573ATG+T Details

  • Manufacturer Part Number:

    MAX17573ATG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X5X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2022-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PWM/PFM

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    54 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17573ATG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17573ATG+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 22uF. The capacitor selection should be based on the specific application requirements, such as output voltage ripple and transient response.
  • The MAX17573ATG+T has an operating ambient temperature range of -40°C to +125°C, but the maximum junction temperature should not exceed 150°C. The device should be derated for temperatures above 85°C to ensure reliable operation.
  • The MAX17573ATG+T has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values should be chosen to set the overcurrent threshold based on the specific application requirements.
  • The recommended input voltage range for the MAX17573ATG+T is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V with reduced performance. The input voltage should be well-regulated and free of noise to ensure reliable operation.
