MAX17579ATC+ - Analog Devices

Description: Switching Voltage Regulators 4.5V to 60V, 1A High-Efficiency, Synchronous, Inverting Output DC-DC Converter with Internal Compensation

Download MAX17579ATC+ Model
Schematic

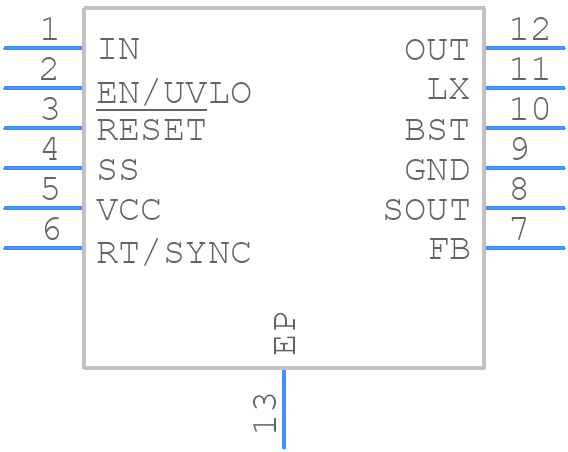

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX17579ATC+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C
click to zoom
3D Models
MAX17579ATC+ - Analog Devices  - 3D model - Small Outline No-lead - TD1233+1C
click to zoom

MAX17579ATC+ Details

  • Manufacturer Part Number:

    MAX17579ATC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-06-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    -36 V

  • Output Voltage-Min:

    -0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    2420 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17579ATC+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17579ATC+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device near the power source and to use a low-ESR capacitor for the input capacitor.
  • To optimize the performance of the MAX17579ATC+, you should consider factors such as the input voltage range, output voltage requirements, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are selected based on the device's requirements. Additionally, you can use simulation tools and models provided by Analog Devices to simulate the device's performance in your specific application.
  • The MAX17579ATC+ has a maximum junction temperature of 150°C. To ensure reliable operation, you should ensure that the device is operated within its recommended operating conditions, and that the PCB is designed to dissipate heat effectively. You can use thermal simulation tools to estimate the device's junction temperature and to optimize the PCB design for thermal performance.
  • To troubleshoot issues with the MAX17579ATC+, you should start by checking the device's input and output voltages, and ensuring that the device is operated within its recommended operating conditions. You should also check the input and output capacitors for any signs of damage or wear, and ensure that the PCB is free from any defects or damage. Additionally, you can use oscilloscopes and other diagnostic tools to measure the device's performance and to identify any issues.
  • The MAX17579ATC+ is designed to meet the EMI and EMC requirements of most applications. However, to ensure compliance, you should ensure that the device is operated within its recommended operating conditions, and that the PCB is designed to minimize EMI and EMC emissions. You should also use shielding and filtering components as necessary to reduce emissions and improve immunity.
